Executive Summary

Introduction

A1. The Project, Design, Build and Operate First Stage of Tseung Kwan O Desalination Plant (TKODP), is a Designated Project under the Environmental Impact Assessment Ordinance (Cap. 499) (EIAO) and is currently governed by a Further Environmental Permit (EP No. FEP - 01/503/2015/B) for the operation phase of the Contract.

A2. In accordance with the Environmental Monitoring and Audit (EM&A) Manual for the Contract, EM&A works for marine water quality, waste management and ecology should be carried out by Environmental Team (ET), Aurecon Hong Kong Limited (Aurecon), during the Tseung Kwan O Desalination Plant.

A3. The TKODP commenced the operation stage on 1 July 2024. This is the 2nd Operation Phase Monthly EM&A Report, prepared by Aurecon, for the Contract summarizing the monitoring results and audit findings of the EM&A programme at and around Tseung Kwan O Area 137 (TKO 137) during first-year operation of Tseung Kwan O Desalination Plant in August 2024.

A4. The EM&A programme for this contract has covered environmental monitoring on water quality and Contractor’s environmental performance auditing in the aspects of dust, landfill gas, water quality, waste management, Landscape and Visual and Ecology.

Summary of exceedance & investigation & follow-up

WATER QUALITY MONITORING

A5. The EM&A works for operation phase marine water quality were conducted during the reporting period in accordance with the EM&A Manual. Twenty-three (23) of SS obtained had exceeded the Action Level. Fifty(50) of SS obtained during the reporting period had exceeded the Limit Level.

A6. The EM&A works for continuous monitoring of effluent quality were conducted during the reporting period in accordance with the EM&A Manual. No exceedance of the sampling was obtained during the reporting period had exceeded the Limit Level.

Ecology Impact Monitoring

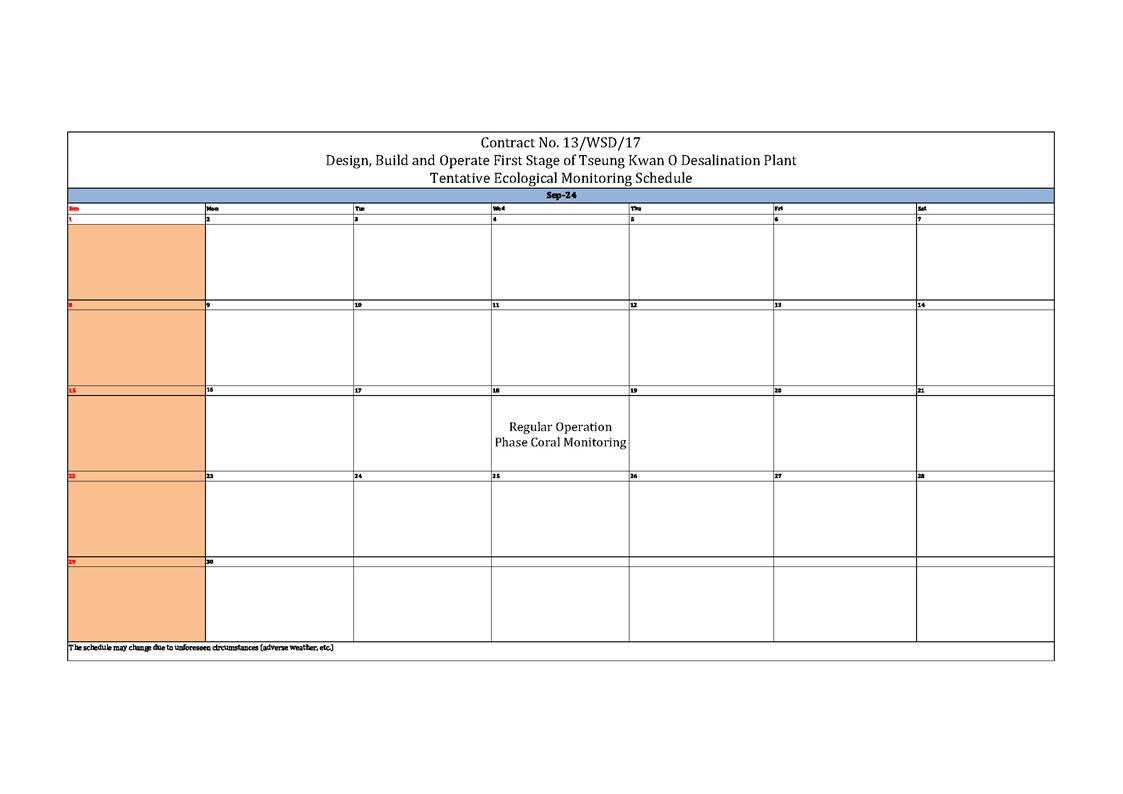

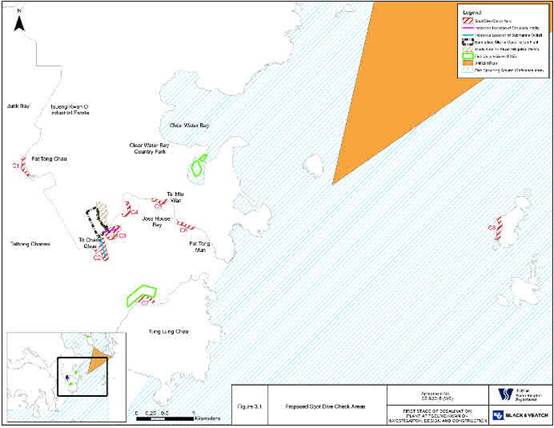

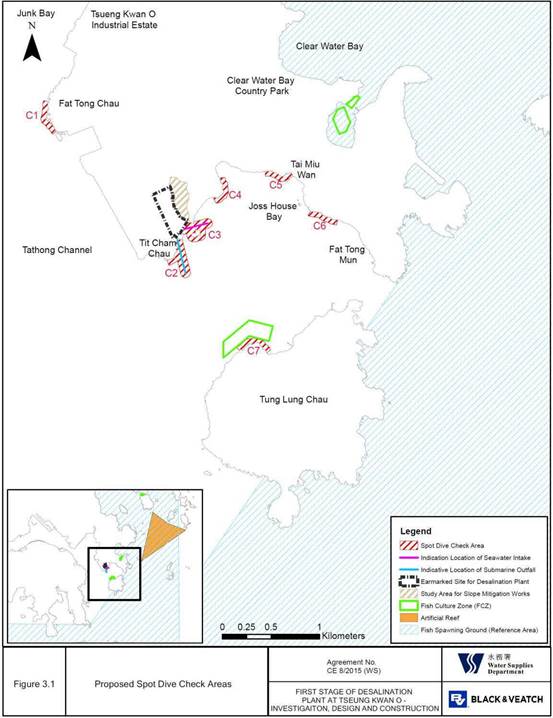

A7. Monthly operation phase coral monitoring works was conducted on 21 August 2024.

There is no AL/LL exceedance during the monitoring period.

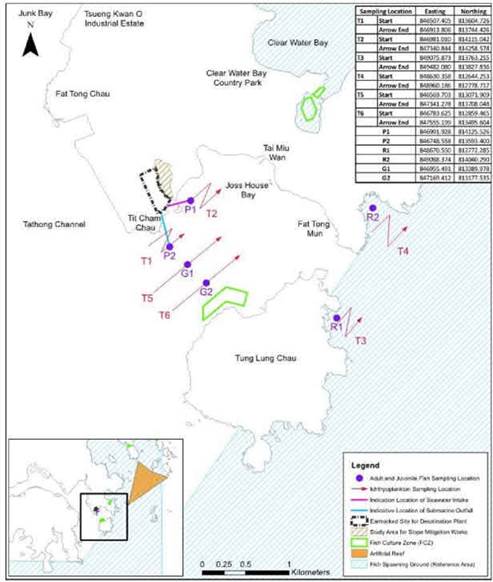

A8. Operation phase fishery monitoring for wet season 2024 was carried out on 24 and 31 August 2024. The detail of the monitoring will be presented when the result is available.

Table 1.1 Contact Details of Key Personnel

Party	Position	Name	Telephone no.
Contract Proponent (Water Supplies Department)	SE/CM2	Milton Law	2634-3573
Supervising Officer (Binnies Hong Kong Limited)	Project Manager	Augustine Li	2608-7671
Supervising Officer (Binnies Hong Kong Limited)	Chief Resident Engineer	Roger Wu	6343-1002
The Jardine Engineering Corporation, Limited, China State Construction Engineering (Hong Kong) Limited and Acciona Agua, S.A. Trading	Project Manager	Stephen Yeung	2807-4665
	Environmental Monitoring Manager	Brian Kam	9456-9541
	Environmental Monitoring Manager	Tommy Law	6468-1782
Aurecon Hong Kong Limited	Environmental Team Leader	Toby Wan	9719-5422
Lam Environmental Services Limited	Independent Environmental Checker (IEC)	Serena Shek	6149-6683

Summary of Operation Works

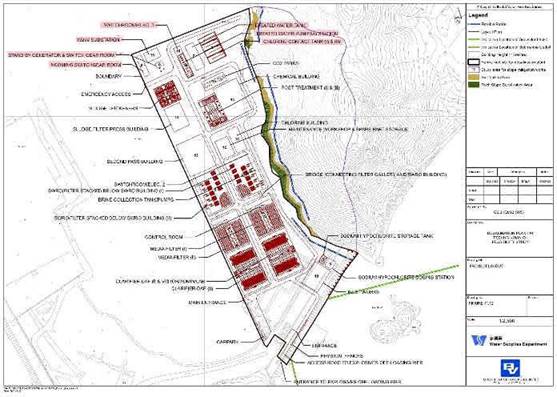

1.7. Details of the major operation activities undertaken in this reporting period are shown below.

1.8. As informed by the Contractor, key activities carried out in this reporting period for the Contract included the followings:

- Production of water

1.9. The key environmental mitigation measures implemented for the Contract in this reporting period associated with the above operation works include:

- Regularly monitoring of the effluent

- Sorting and storage of general refuse and operation waste

1.10. Summary of the valid permits, licences, and/or notifications on environmental protection for this Contract is presented in Table 1.2.

Table 1.2 Summary of the Status of Valid Environmental Licence, Notification, Permit and Documentations

Permit/ Licences	Valid Period		Status	Remark
	From	To
Environmental Permit
EP-503/2015/B	Throughout the Contract		Valid	-Issued on 3 April 2024
FEP - 01/503/2015/B	Throughout the Contract		Valid	-Issued on 3 April 2024
Billing Account for Disposal
7036276	Throughout the Contract		Valid	-
Sludge (Special Waste) Disposal (Admission Ticket)
17913	01/07/2024	24/12/2024	Valid
Chemical Waste Producer Registration
5213-839-A2987-01	Throughout the Contract		Valid	-
Wastewater Discharge Licence (Land and Marine works)
WT00035775-2020	23/08/2021	31/07/2025	Valid	-
WT00044188-2023	16/06/2023	30/06/2028	Valid	- For Plant T&C and operation. Variation　sampling point　S.P.1 is approved by the EPD on 25 June 2024 (EPD　ref.: EP640/W3/D1358/ 462874).

1.11. The status for all environmental aspects is presented in Table 1.3.

Table 1.3 Summary of Status for Key Environmental Aspects under the EM&A Manual

Parameters	Status
Water Quality
Baseline Monitoring under EM&A Manual	The baseline water quality monitoring was conducted between 12 May 2020 to 6 Jun 2020.
Operation phase Marine Impact Monitoring	On-going
Continuous Monitoring of Effluent Quality	On-going
Waste Management
Mitigation Measures in Waste Management Plan	On-going

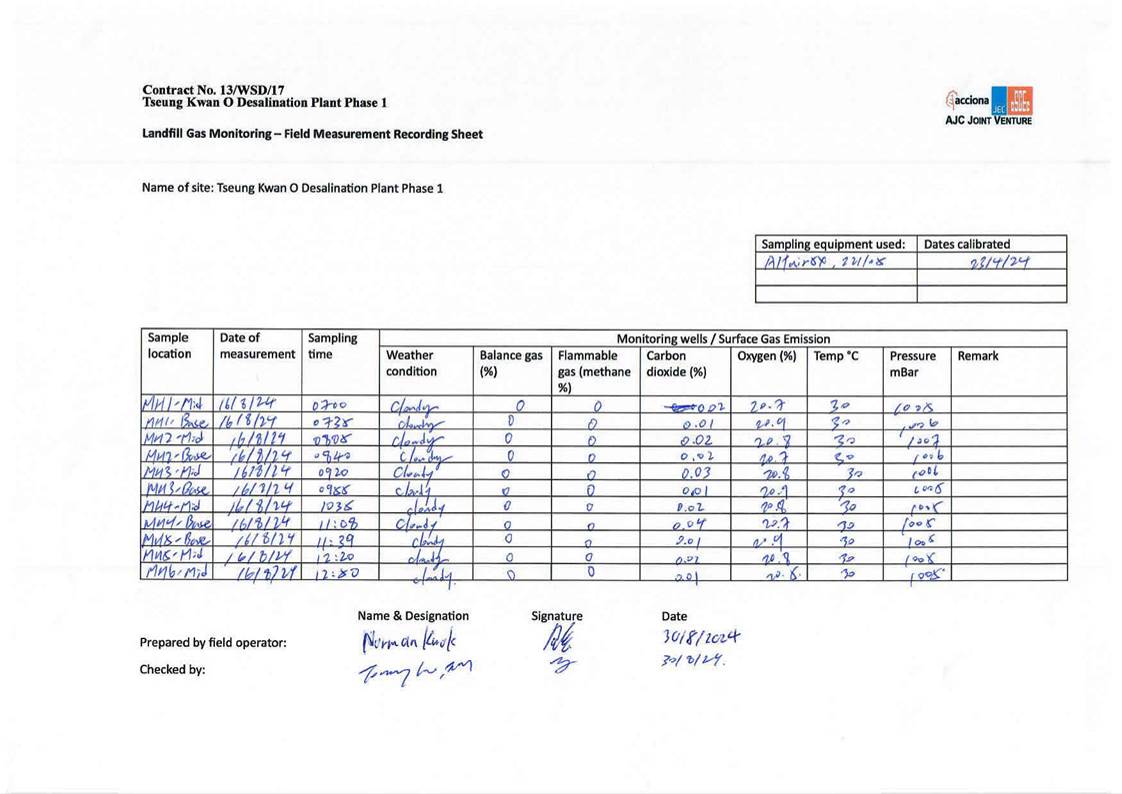

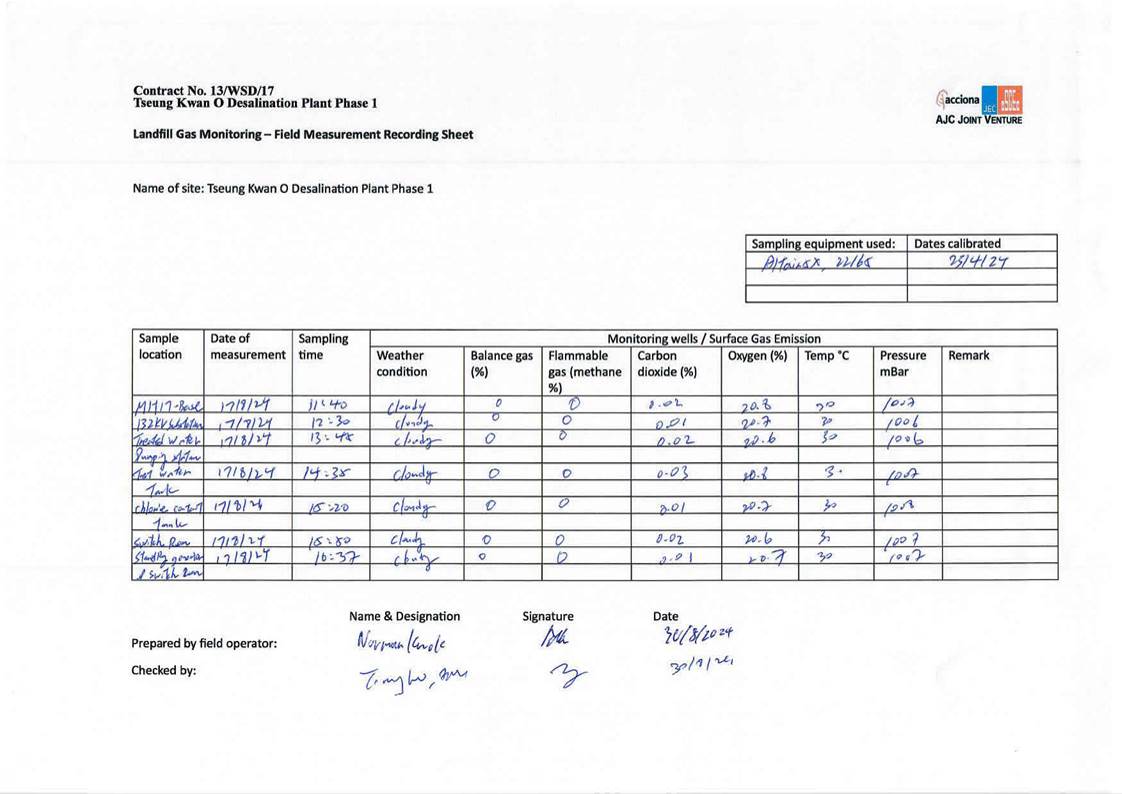

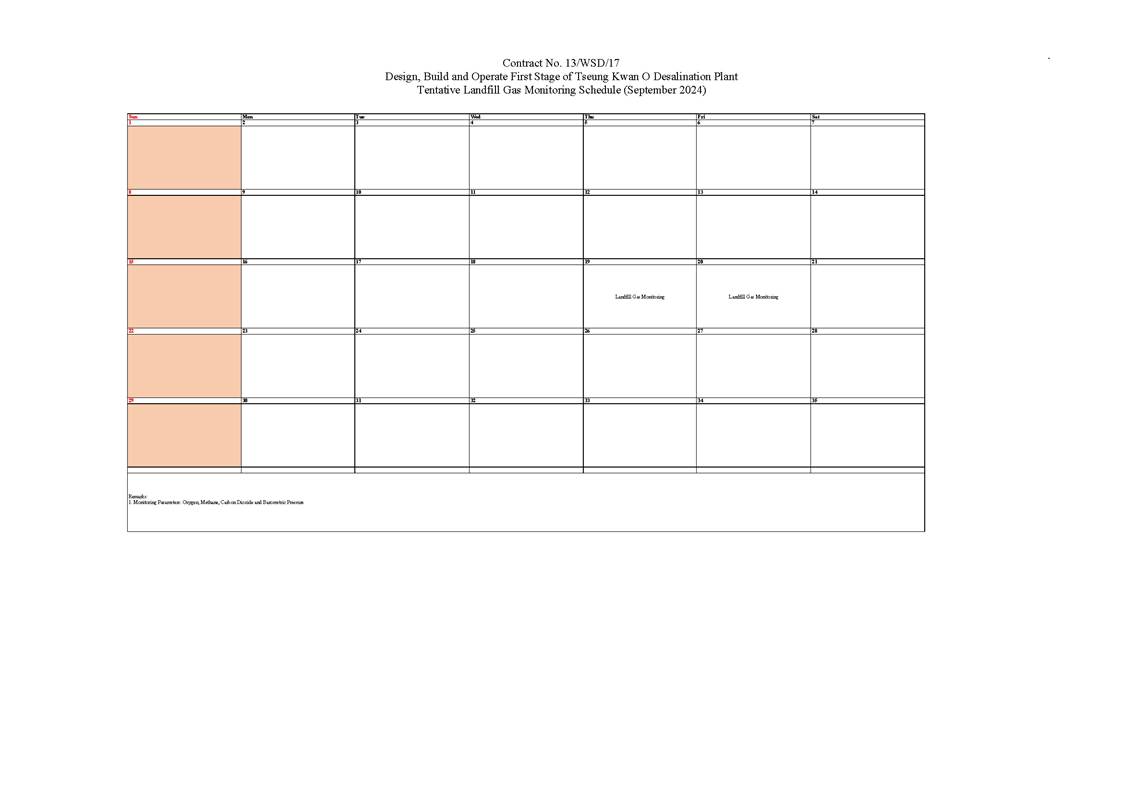

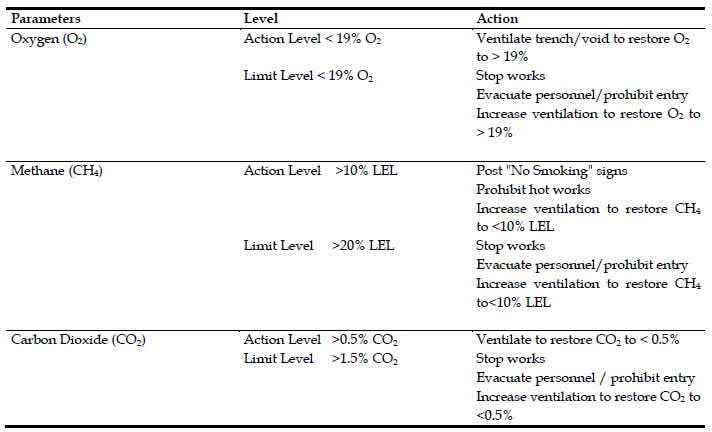

Landfill Gas

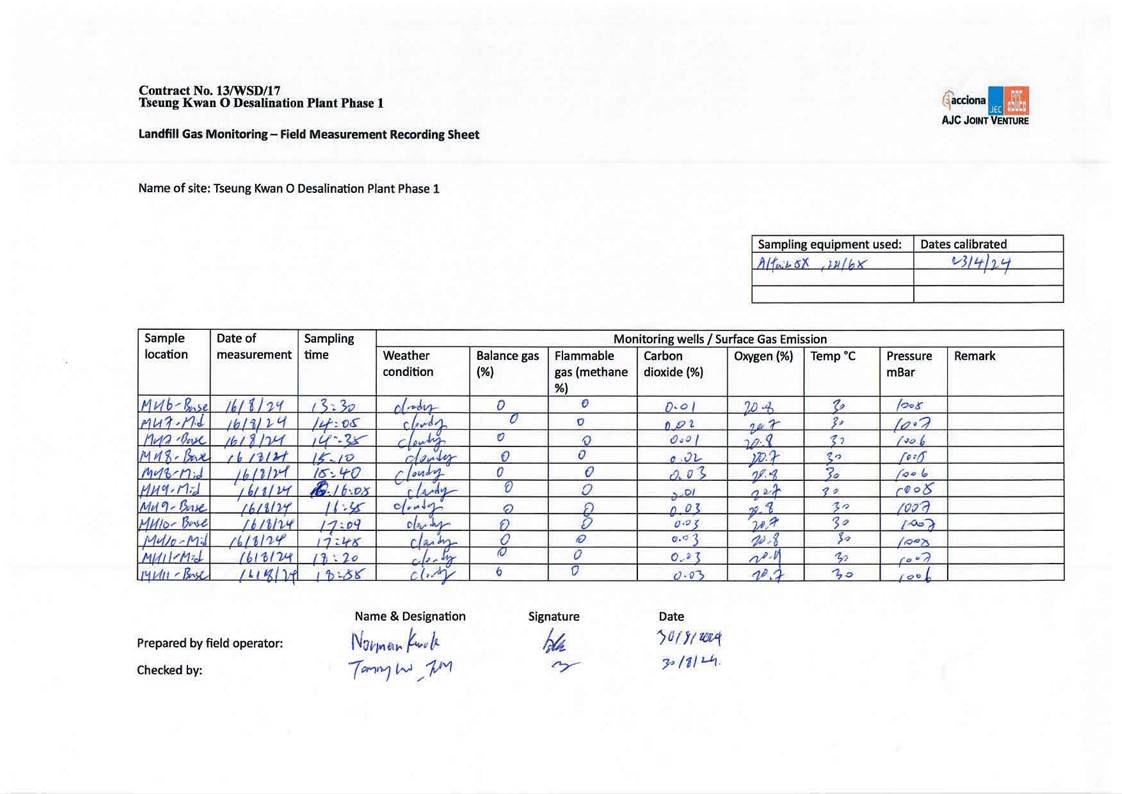

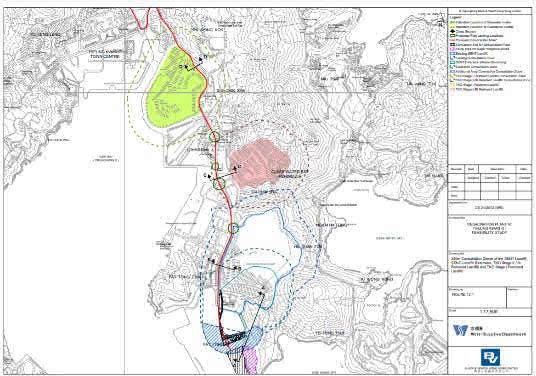

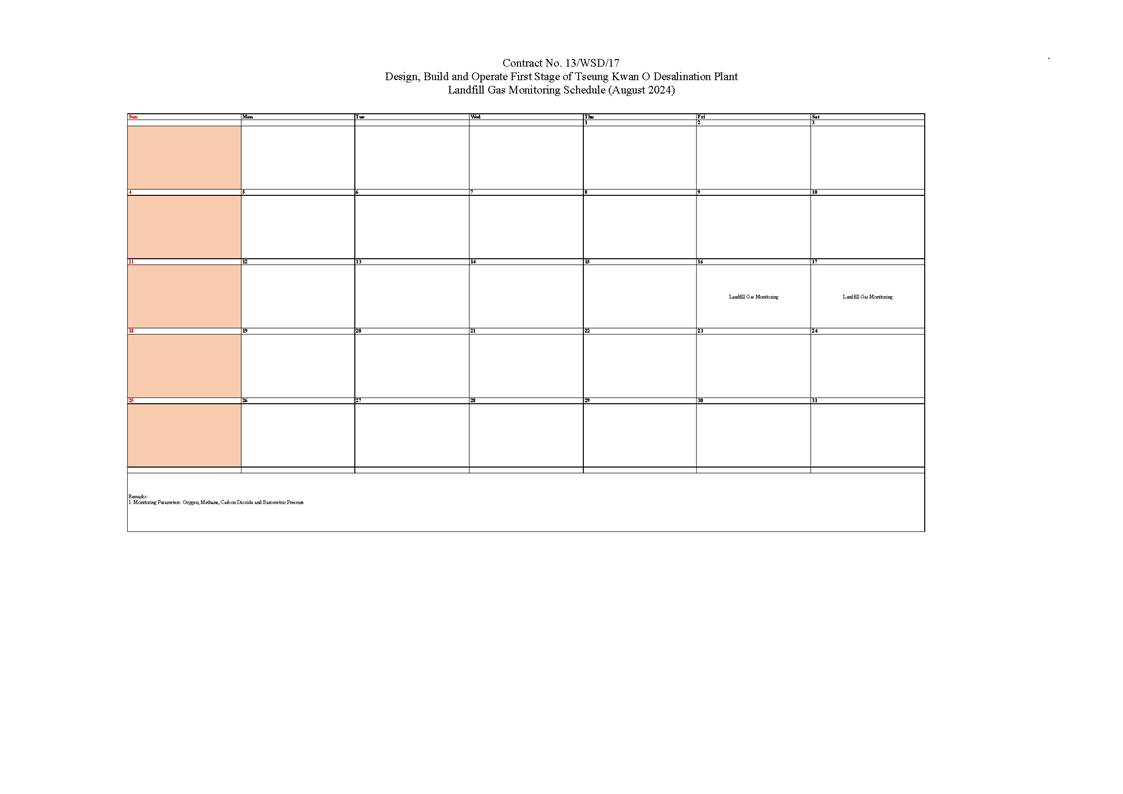

Monthly Monitoring for buildings, manholes and utility pits within the Project Site and along the fresh water mains	On-going

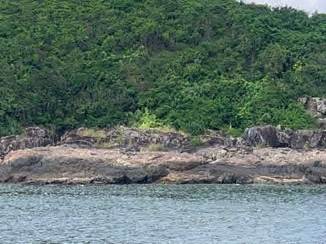

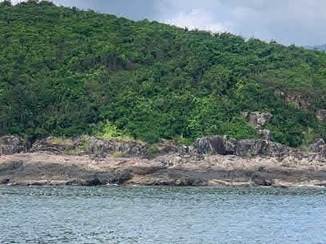

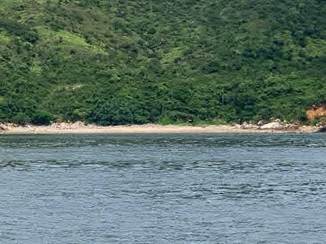

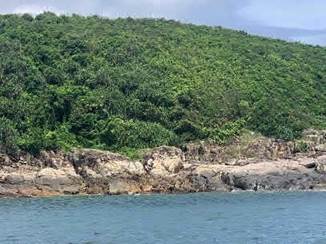

Ecology (Coral)
Operation phase Regular Coral Monitoring (Monthly)	On-going
Ecology (Fishery)
Operation phase Regular Fishery Monitoring (Seasonally)	On-going
Landscape
Operation phase Landscape and Visual Site Inspection	On-going

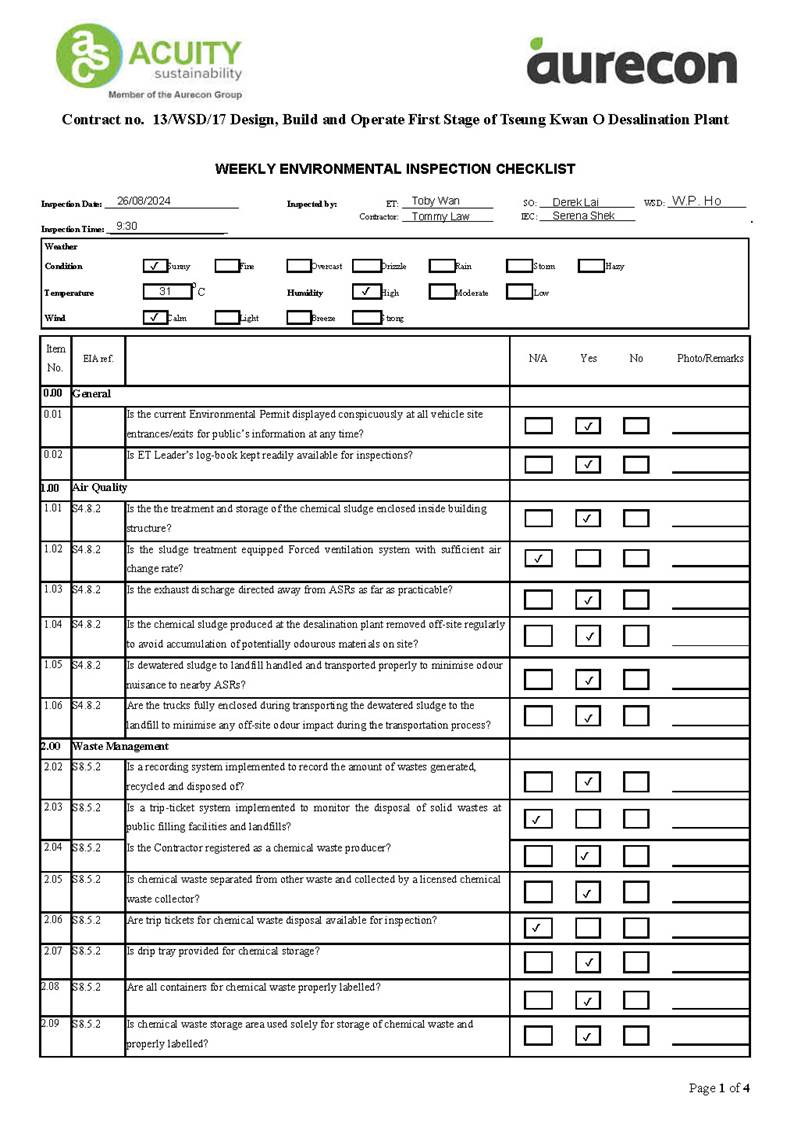

Environmental Audit

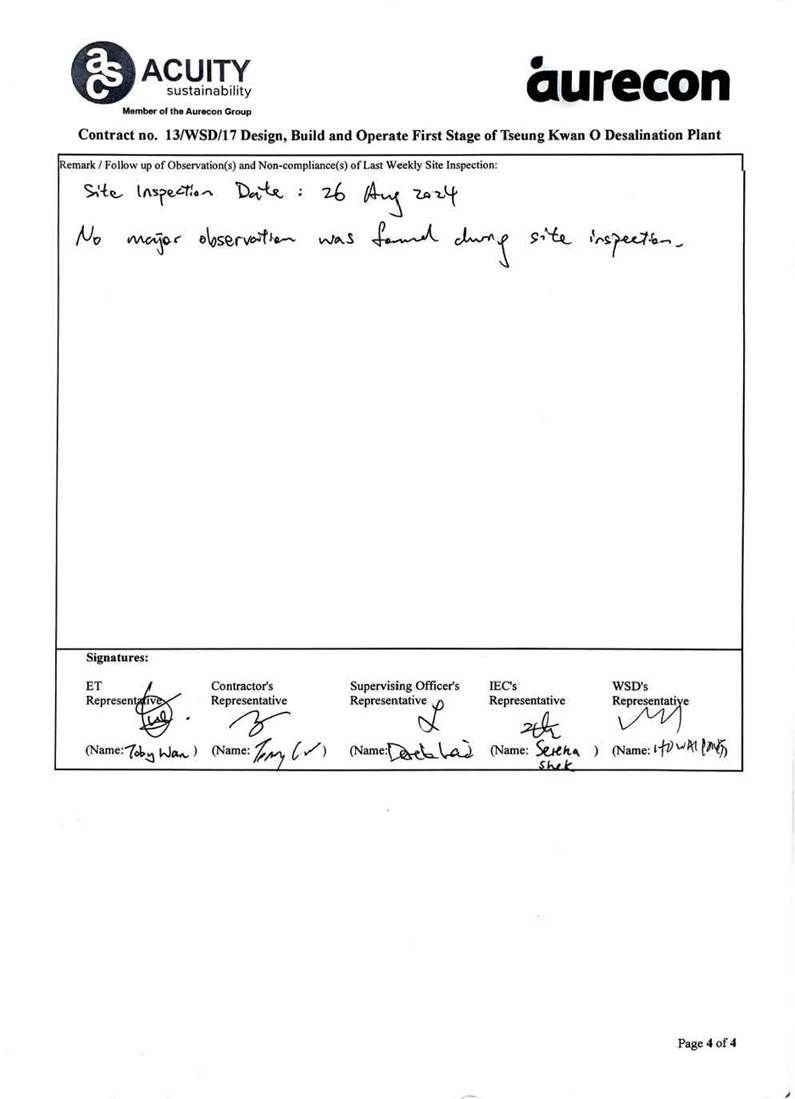

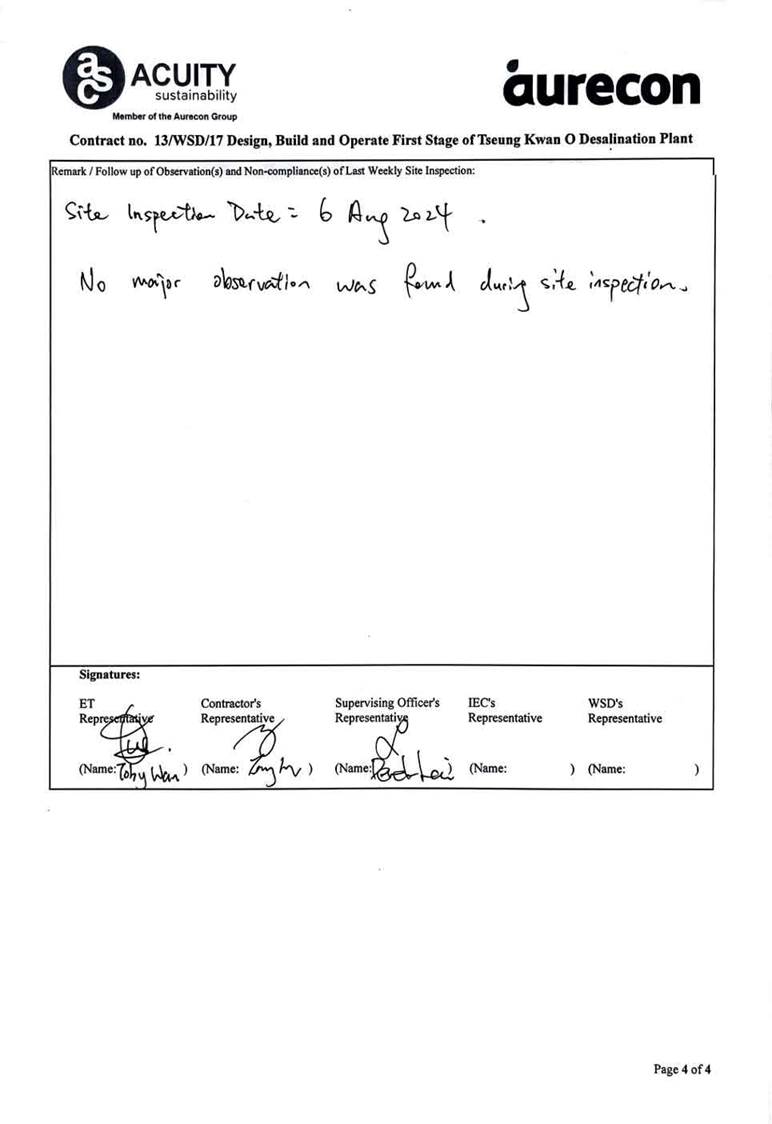

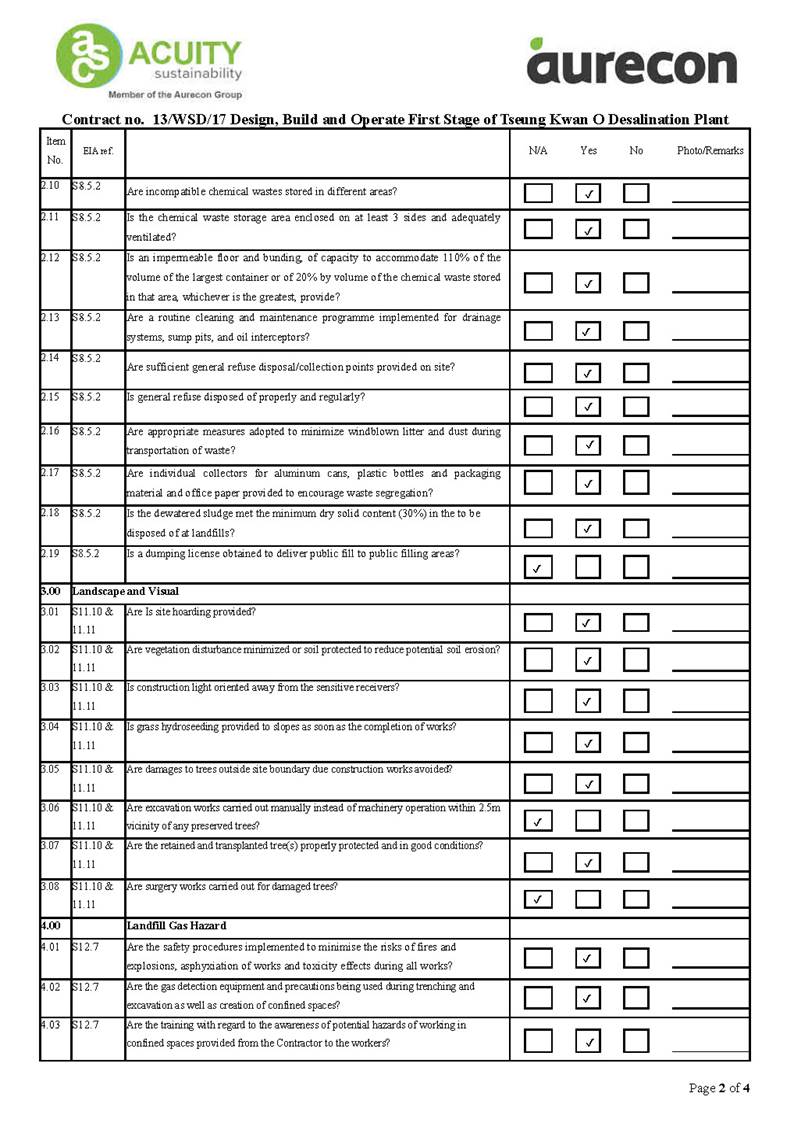

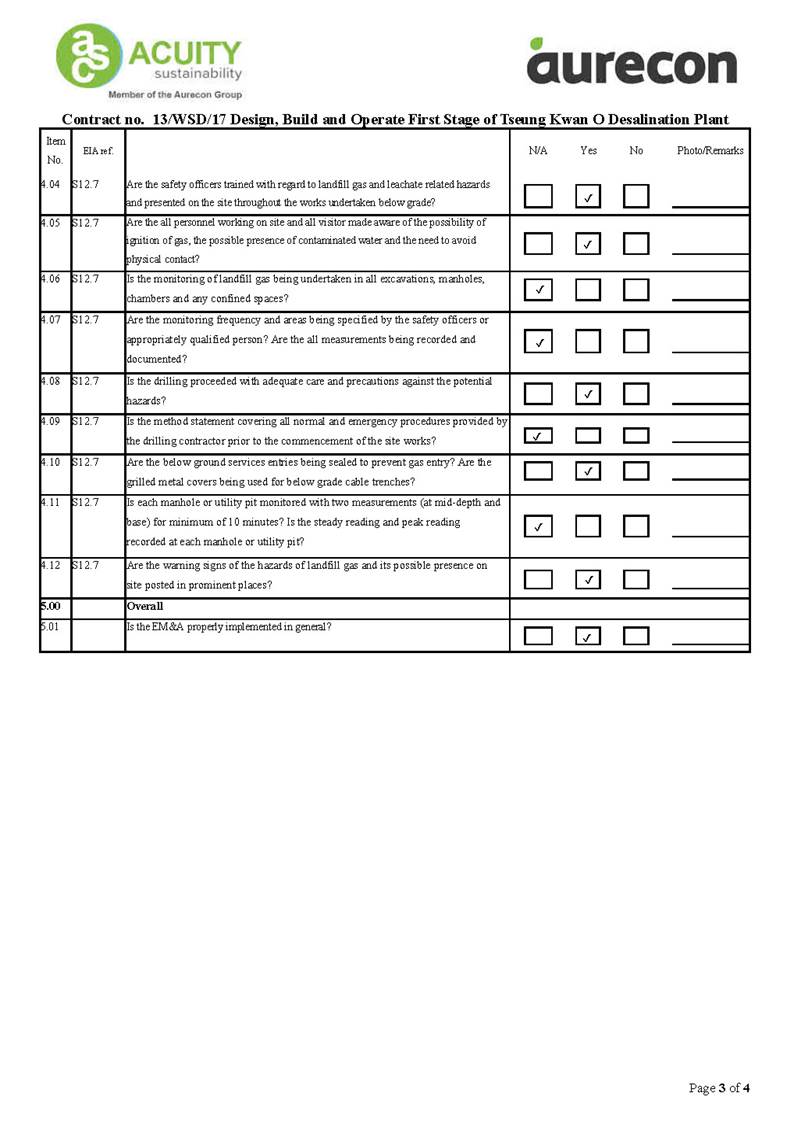

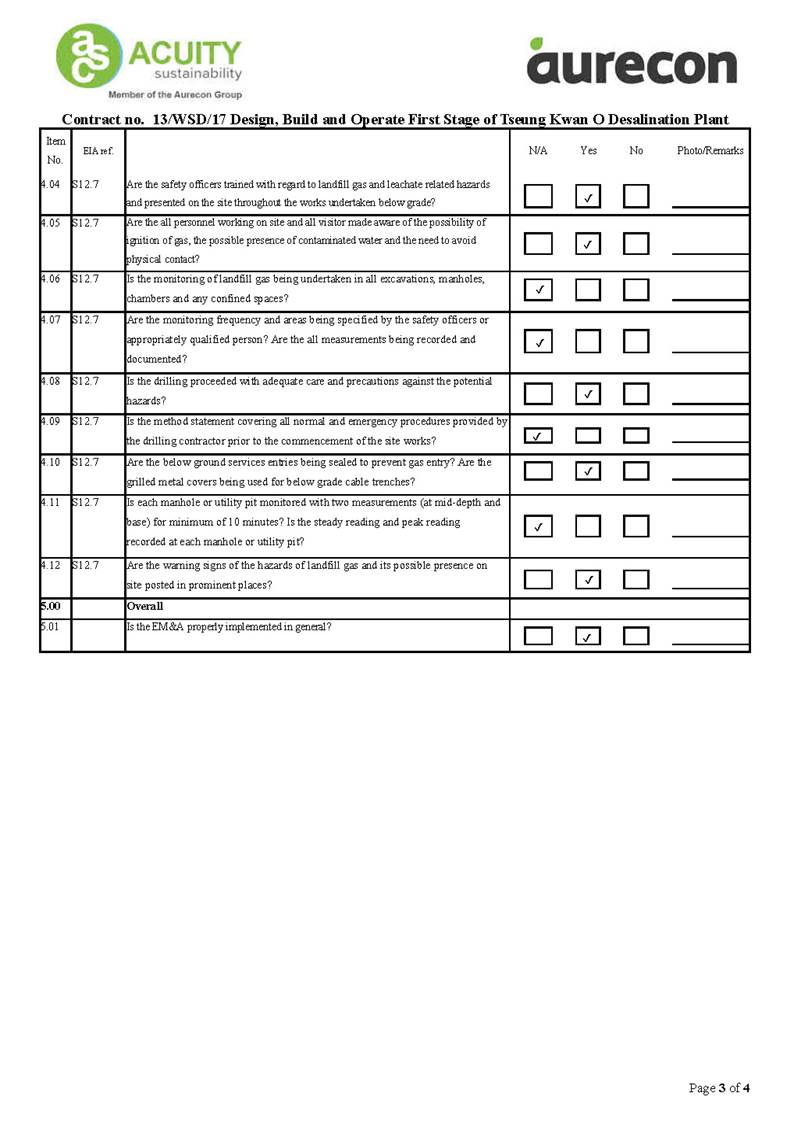

Site Inspection covering Measures of Air Quality, Water Quality, Waste, Ecological Quality, Fisheries, Landscape and Visual	On-going

1.12. Other than the EM&A work by ET, environmental briefings, trainings, and regular environmental management meetings were conducted, in order to enhance environmental awareness and closely monitor the environmental performance of the contractors.

1.13. The EM&A programme has been implemented in accordance with the recommendations presented in the approved EIA Report and the EM&A Manual. A summary of implementation status of the environmental mitigation measures for the operation phase of the Contract during the reporting period is provided in Appendix B.

2. Water Quality

2.1. In accordance with the recommendations of the EIA, water quality monitoring is required during operation phase. The following Section provides details of the water quality monitoring to be undertaken by the Environmental Team (ET) to verify the distance of sediment and brine plume dispersion and to identify whether the potential exists for any indirect impacts to occur to ecological sensitive receivers.

2.2. The water quality monitoring programme was be carried out to allow any deteriorating water quality to be readily detected and timely action taken to rectify the situation.

2.3. Water quality monitoring for the Contract can be divided into the following stages:

(a) Operation phase Marine Water Quality Monitoring - first year upon commissioning (b)Continuous Monitoring of Effluent Quality

Water Quality Parameters

2.4. Parameters to be measured in the marine water quality monitoring and the Continuous Monitoring of Effluent Quality are listed in Table 2.1 and Table 2.2 respectively.

a) Operation phase Marine Water Quality Monitoring

2.5. The parameters for the marine water quality monitoring that have been selected for measurement in situ and in the laboratory are those that were either determined in the EIA to be those with the most potential to be affected by the operation works or are a standard check on water quality conditions.

Table 2.1 Parameters measured in the Marine Water Quality Monitoring

Parameters	Unit	Abbreviation
In-situ measurements
Dissolved oxygen	mg/L	DO
Temperature	oC	-
pH	-	-
Turbidity	NTU	-
Salinity	0/00	-
Total Residual Chlorine	mg/L	TRC
Laboratory measurements
Suspended Solids	mg/L	SS
Iron-Soluble	mg/L	Fe
Anti-scalant as Reactive Phosphorus*	mg/L	PO4 as P-

*Remark: Anti-scalant water quality testing will only be conducted whenever anti-scalant dosage is adopted.

b) Continuous Monitoring of Effluent Quality

2.6. The monitoring requirement for the continuous effluent quality monitoring shall be conducted in accordance with the effluent parameters and standards stipulated by the Water Pollution Control Ordinance Discharge License (No.: WT00044188-2023) conditions.

Table 2.2 Parameters measured in the Continuous Monitoring of Effluent Quality

Parameters	Unit	Abbreviation
In-situ measurements
Temperature	oC	-
pH	pH	-
Salinity	0/00	-
Total Residual Chlorine	mg/L	TRC
Laboratory measurements
Suspended Solids	mg/L	SS
Iron-Soluble	mg/L	Fe
Total Inorganic Nitrogen	mg/L	-
Total Phosphorus	mg/L	-
Sodium Metabisulphite	mg/L	SMBS
Anti-scalant as Reactive Phosphorus *	mg/L	PO4 as P-

*Remark: Anti-scalant water quality testing will only be conducted whenever anti-scalant dosage is adopted.

2.7. In addition to the marine water quality parameters, other relevant data were also being measured and recorded in Water Quality Monitoring Logs, including the location of the sampling stations, water depth, time, weather conditions, sea conditions, tidal stage, current direction and velocity, special phenomena and work activities undertaken around the monitoring and works area that may influence the monitoring results.

Monitoring Equipment

a) Operation phase Marine Water Quality Monitoring

2.8. For water quality monitoring, the following equipment were used:

Dissolved Oxygen and Temperature Measuring Equipment - The instrument was a portable, weatherproof dissolved oxygen measuring instrument complete with cable, sensor, comprehensive operation manuals, and was operable from a DC power source. It was capable of measuring: dissolved oxygen levels in the range of 0 - 20 mg/L and 0 - 200% saturation; and a temperature of 0 - 45 degrees Celsius. It has a membrane electrode with automatic temperature compensation complete with a cable of not less than 35 m in length. Sufficient stocks of spare electrodes and cables were available for replacement where necessary (e.g. YSI model 59 DO meter, YSI 5739 probe, YSI 5795A submersible stirrer with reel and cable or an approved similar instrument).

Turbidity Measurement Equipment - The instrument was a portable, weatherproof turbidity-measuring unit complete with cable, sensor and comprehensive operation manuals. The equipment was operated from a DC power source, it has a photoelectric sensor capable of measuring turbidity between 0 - 1000 NTU and complete with a cable with at least 35 m in length (for example Hach 2100P or an approved similar instrument).

Salinity Measurement Instrument - A portable salinometer capable of measuring salinity in the range of 0 - 40 ppt was provided for measuring salinity of the water at each monitoring location.

Water Depth Gauge - A portable, battery-operated echo sounder (for example Seafarer 700 or a similar approved instrument) was used for the determination of water depth at each designated monitoring station. This unit will preferably be affixed to the bottom of the work boat if the same vessel is to be used throughout the monitoring programme. The echo sounder was suitably calibrated.

Positioning Device - A Global Positioning System (GPS) was used during monitoring to allow accurate recording of the position of the monitoring vessel before taking measurements. The Differential GPS, or equivalent instrument, was suitably calibrated at appropriate checkpoint (e.g. Quarry Bay Survey Nail) to verify that the monitoring station is at the correct position before the water quality monitoring commence.

Water Sampling Equipment - A water sampler, consisting of a PVC or glass cylinder of not less than two litres, which can be effectively sealed with cups at both ends, was used. The water sampler has a positive latching system to keep it open and prevent premature closure until released by a messenger when the sampler is at the selected water depth.

Total Residual Chlorine -Total residual chlorine (TRC) shall be measured in-situ using approved test kit.

b) Continuous Monitoring of Effluent Quality

2.9. The equipment to be used for the effluent quality monitoring was summarizes in Table 2.3.

Table 2.3 Parameters measured in the Continuous Monitoring of Effluent Quality

Equipment

Model

Refrigerated Sampler

Teledyne ISCO 5800

Online sampler for real-time monitoring (Xylem WTW IQ SensorNet system and sensors)

DIQ/S 284-PR: Universal Transmitter to operate up to 4 digital IQ sensors, with PROFIBUS-connection

Equipment	Model
	TetraCon® 700 IQ SW: Digital 4 electrode conductivity cell, in seawater design, suited for heavily polluted water, for use with the IQ SENSOR NET. With integrated temperature sensor
	VisoTurb® 700 IQ SW: Digital turbidity sensor for industrial and seawater applications (ultrasonic cleaning) for use with the IQ SENSOR NET system
	SensoLyt® 700 IQ SW: Robust digital pH/ORP sensor for SensoLyt® SEA/ DWA/ECA/PtA pH/ORP electrodes, in sea water design, for use with the IQ SENSOR NET. With built-in pre-amplifier and temperature sensor (NTC), with SensCheck function
	FDO®700 IQ SW: Digital calibration free optical D.O. sensor (universal use). Optimized for measuring and controlling the O2 input in seawater applications, for use with IQ SENSOR NET. Factory calibrated system composed of sensor FDO® 700 IQ SW, membrane cap SCFDO® 700 and protective cap MSK FDO®
	Chlorine 3017M: Online analyzer for photometric measurement of free and total chlorine, according to colorimetric DPD Method (ISO &US EPA); outputs (selectable): 4 to 20 mA or RS 485

Based on Section 5.1.3 of the EM&A Manual, the online sampler for real-time monitoring will be tested before use by HOKLAS-accredited laboratory and will be re-calibrated at monthly intervals throughout the stages of effluent quality monitoring.

Sampling / Testing Protocols

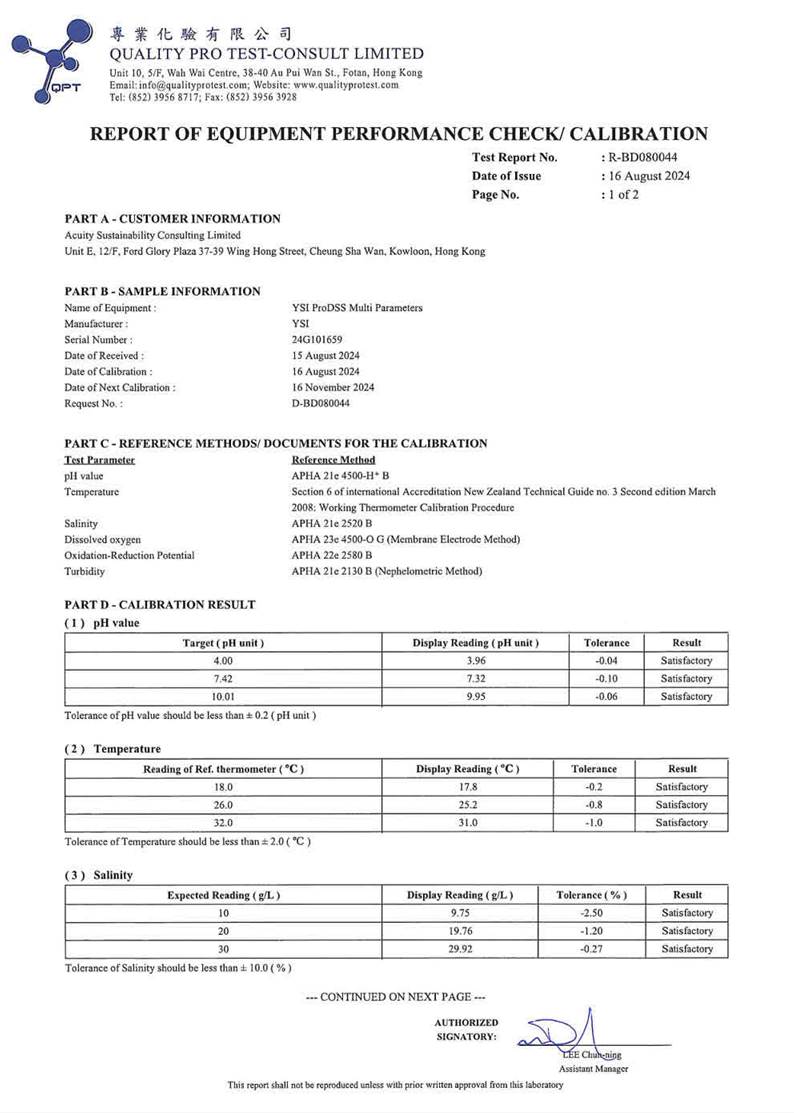

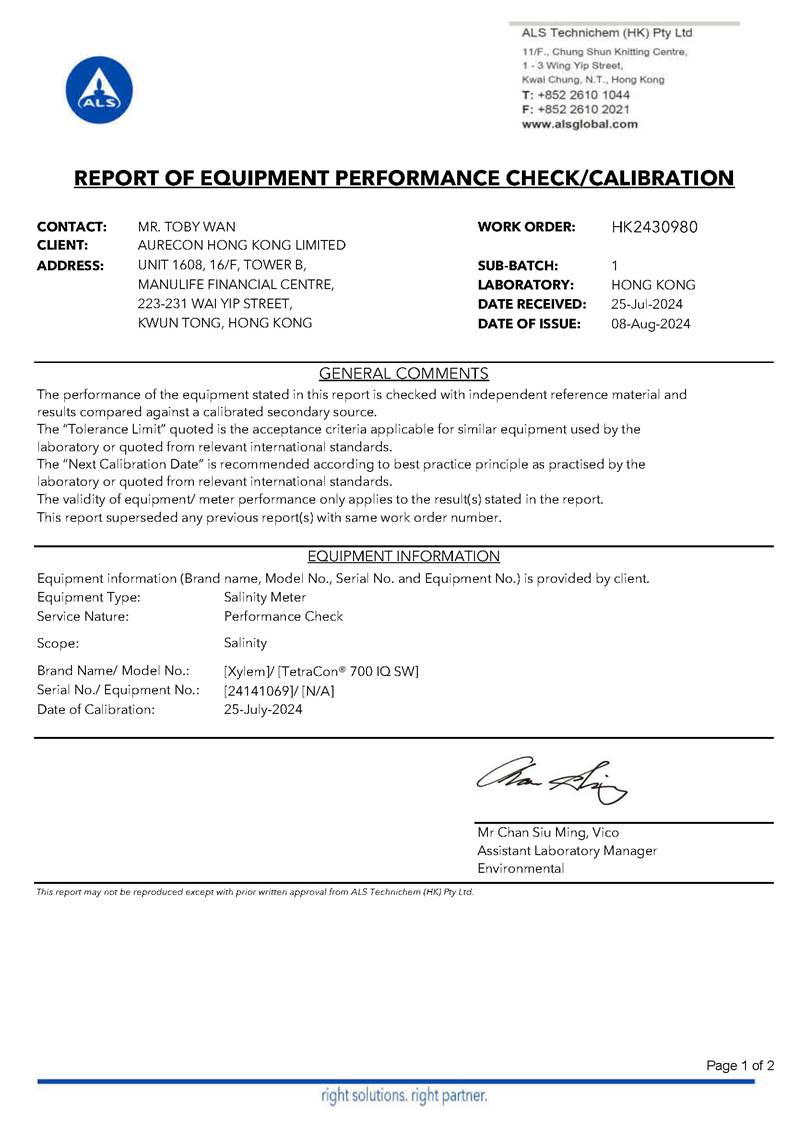

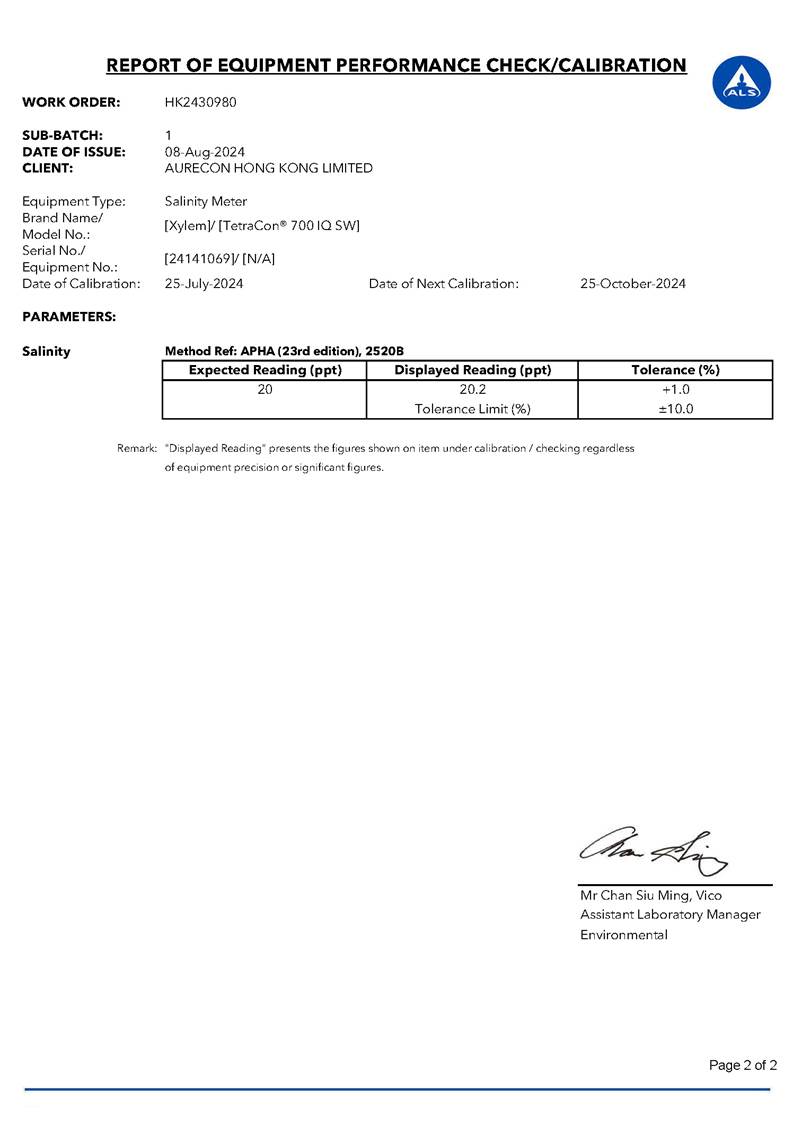

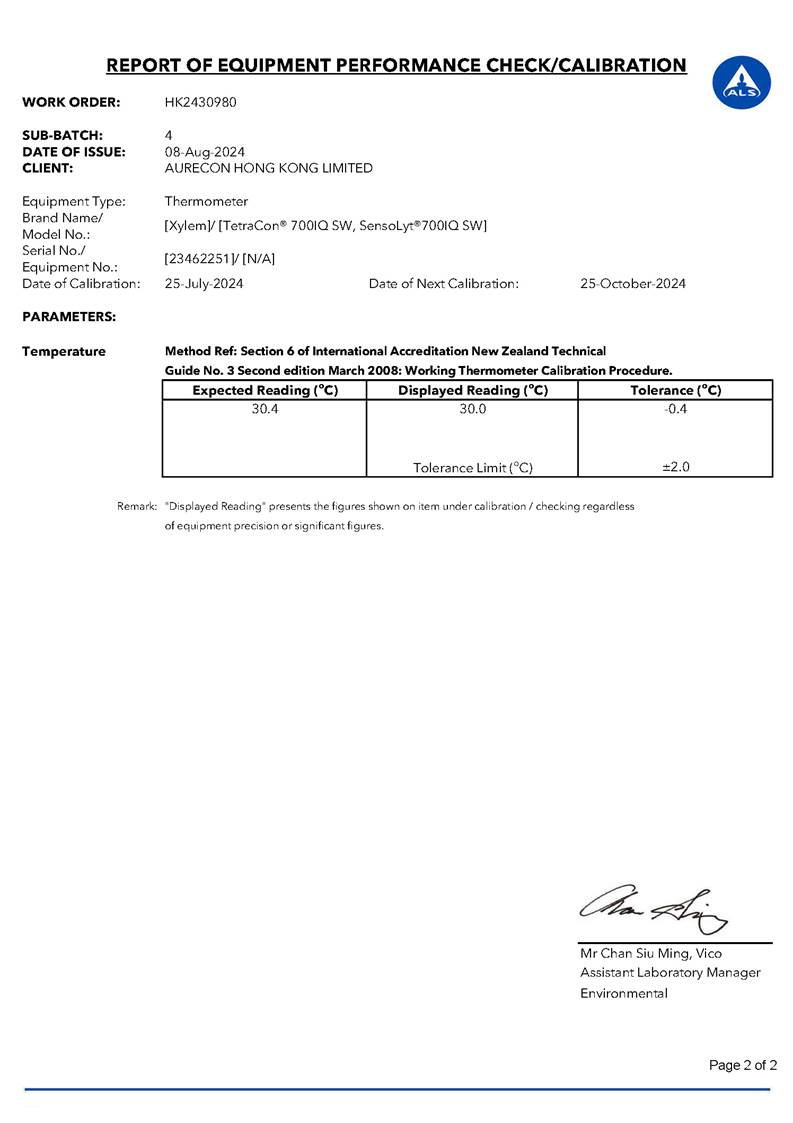

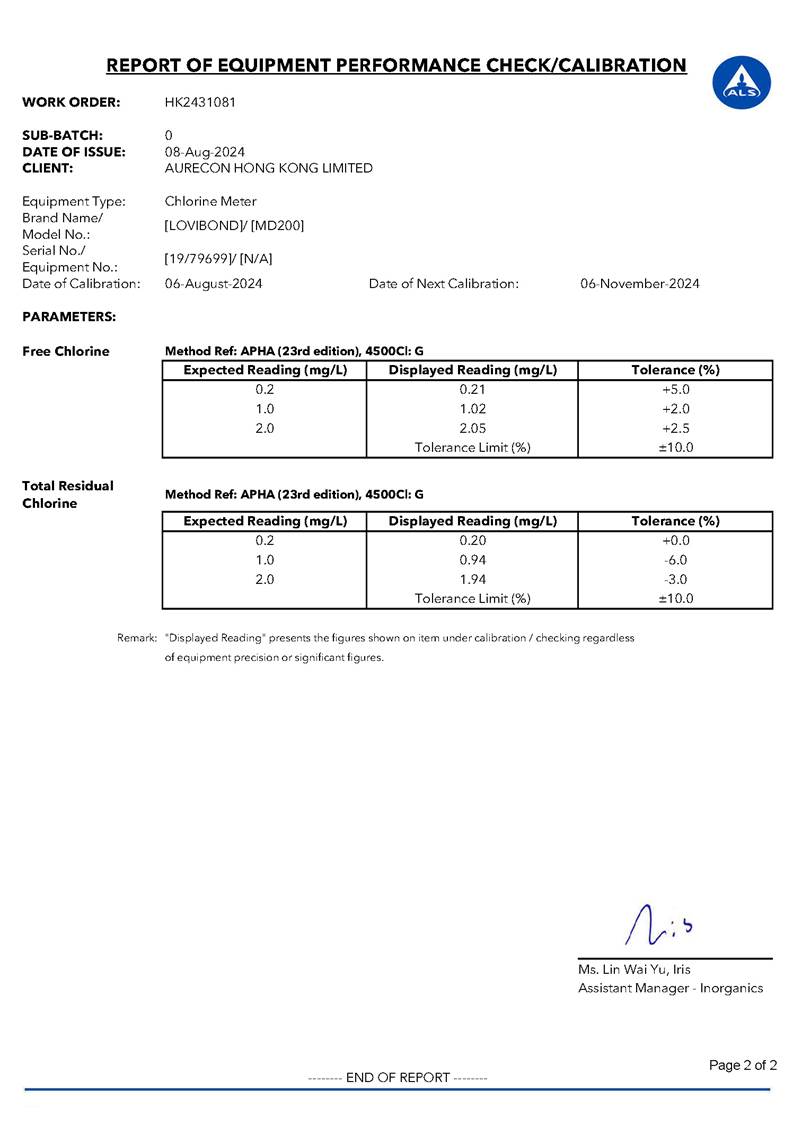

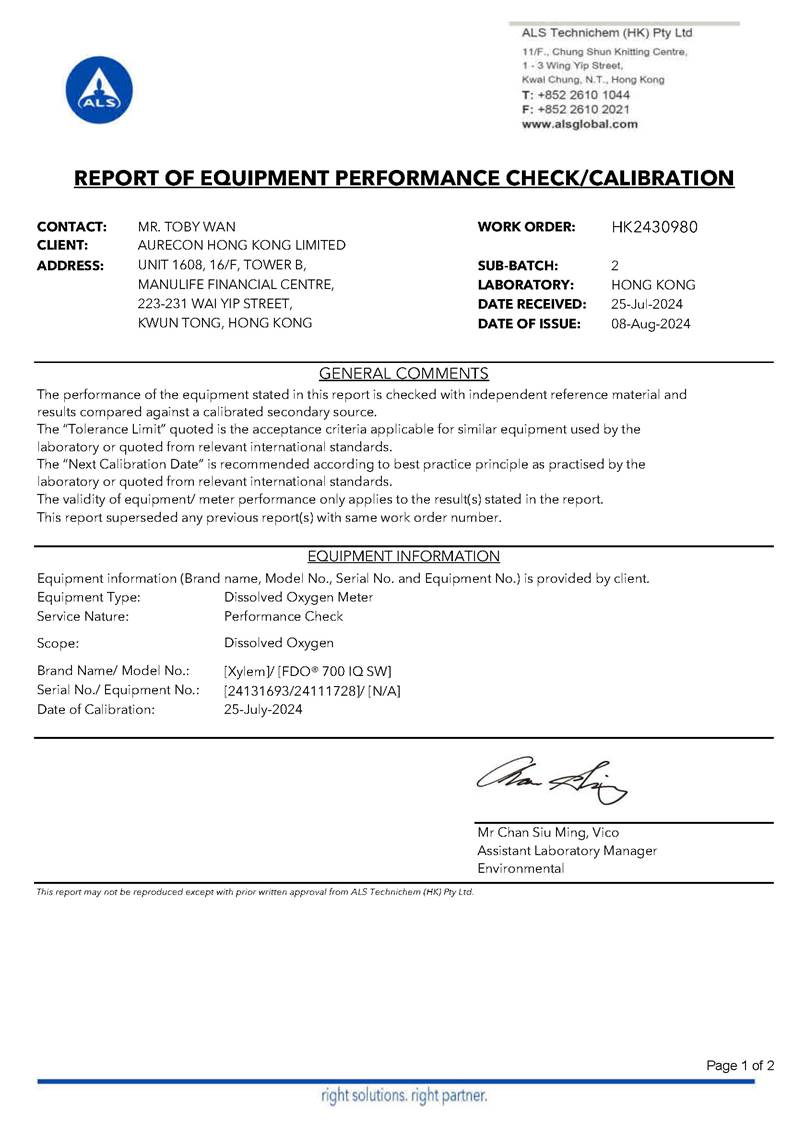

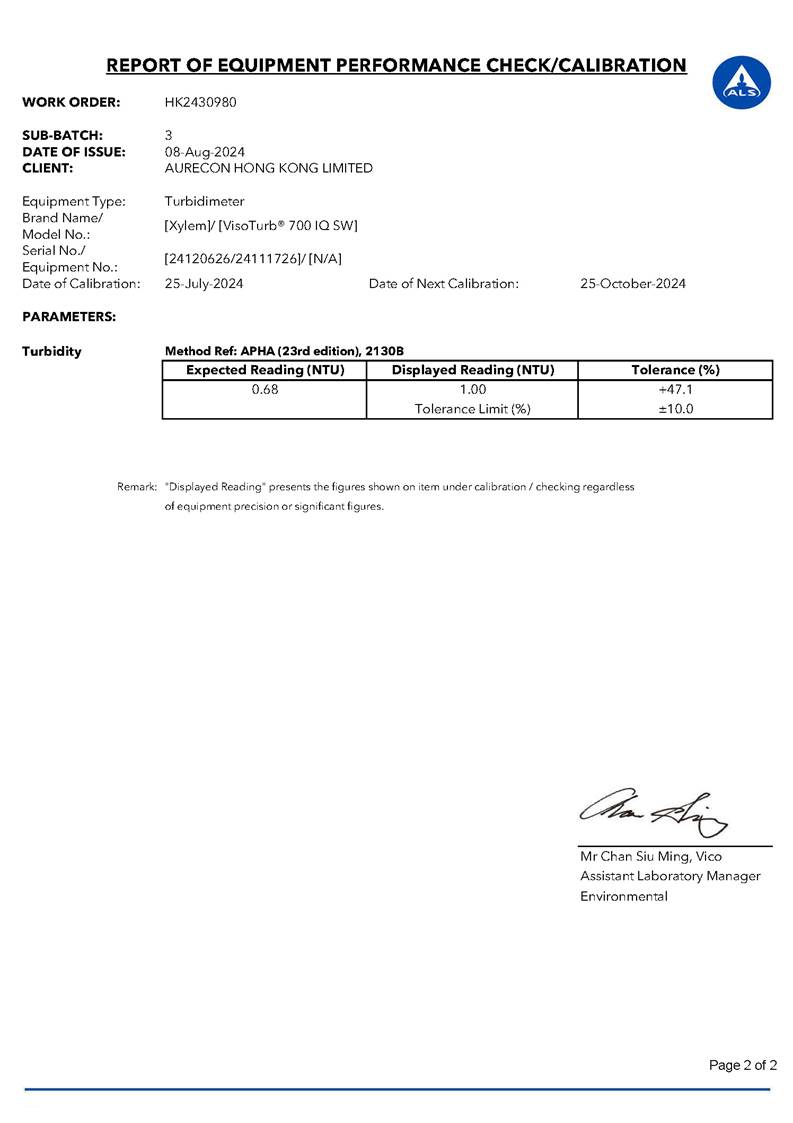

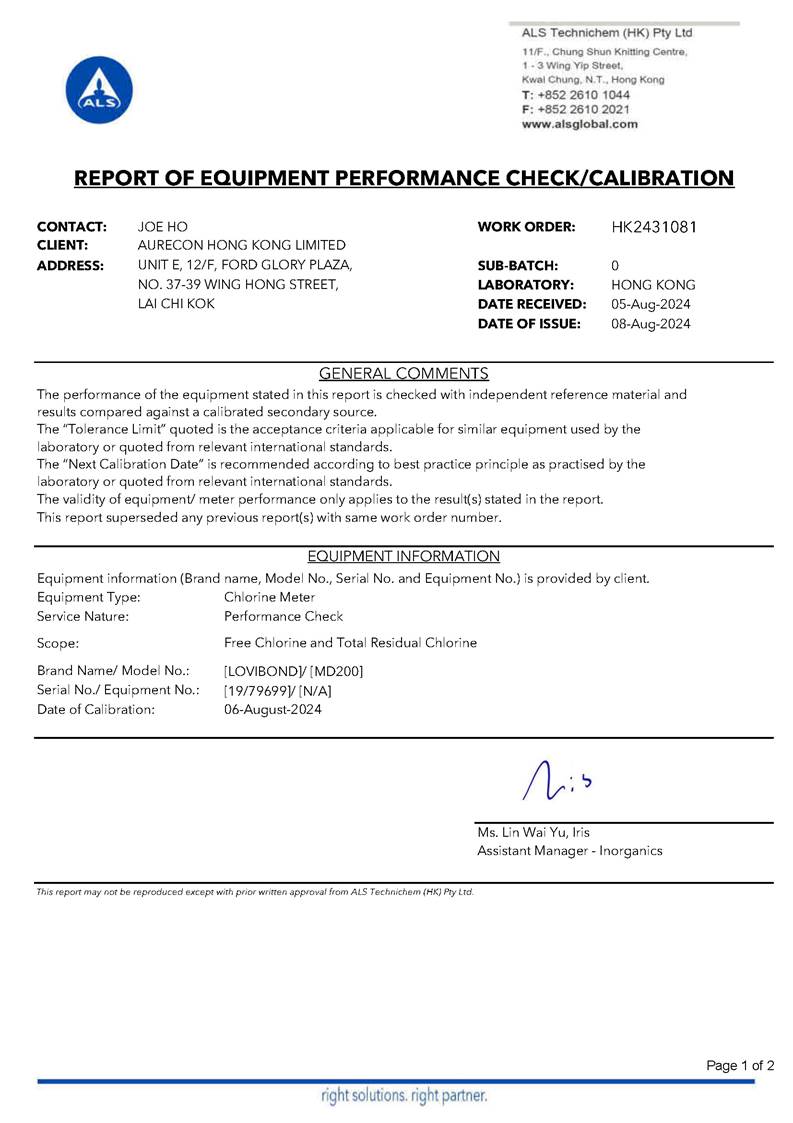

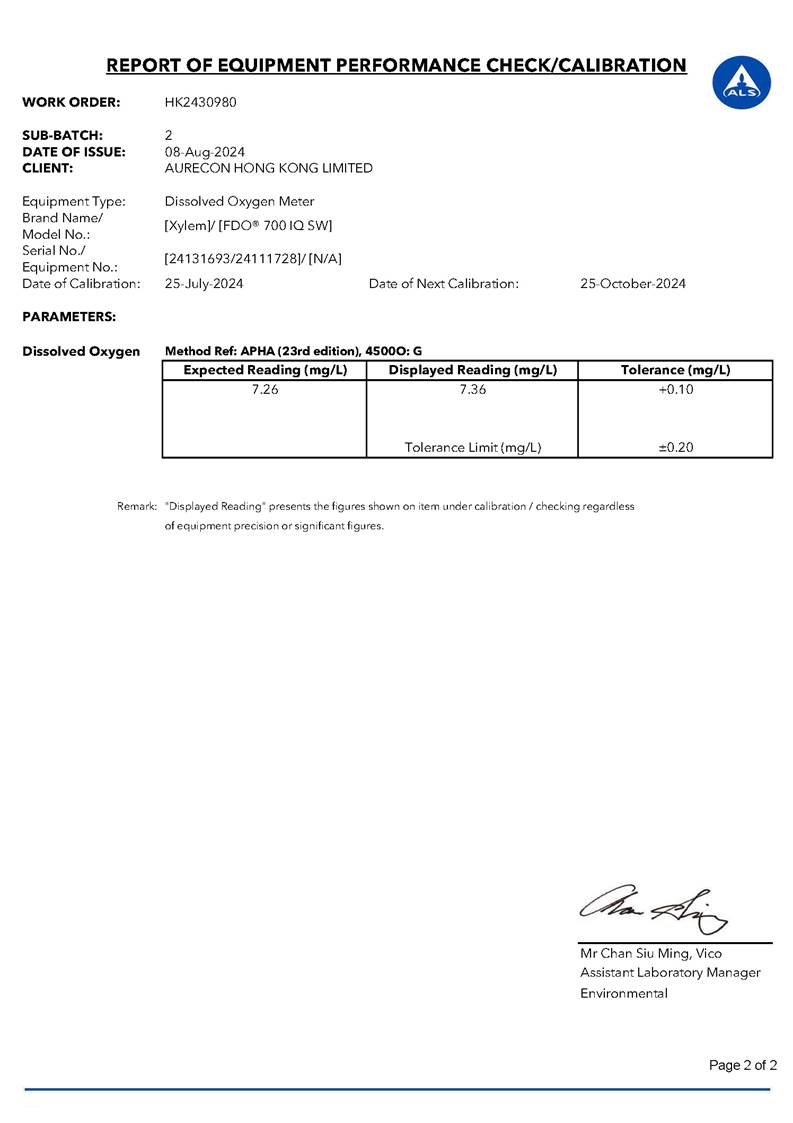

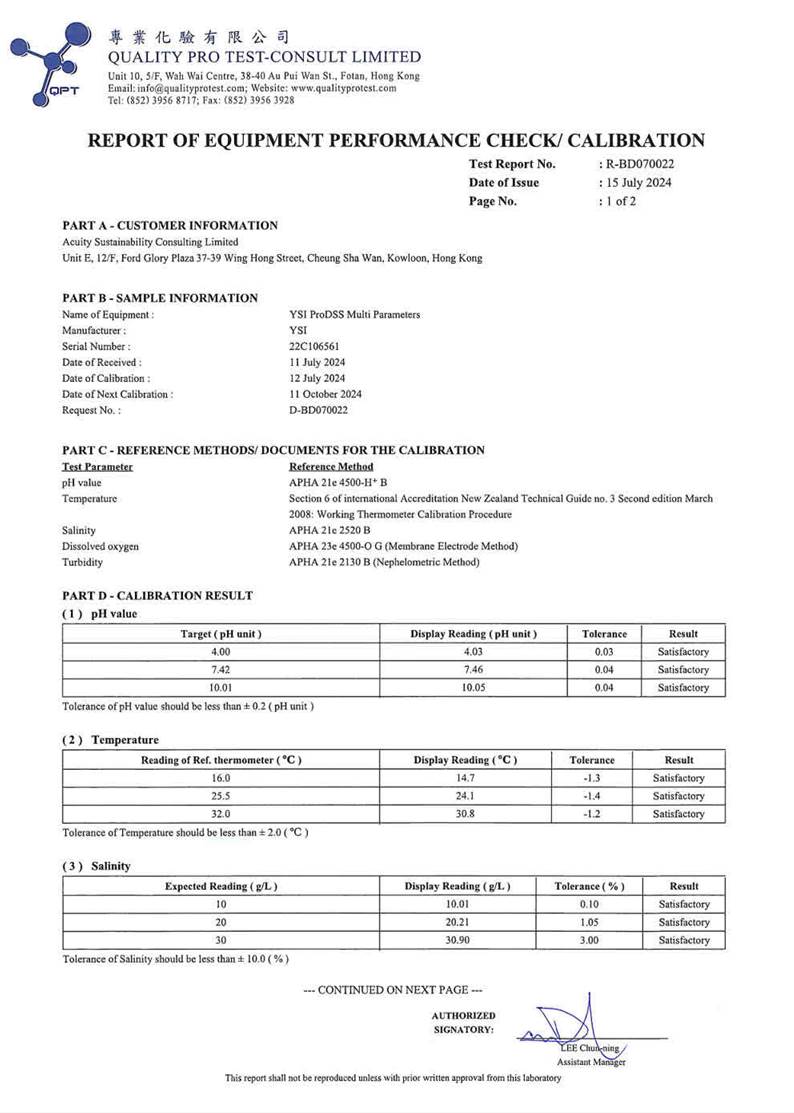

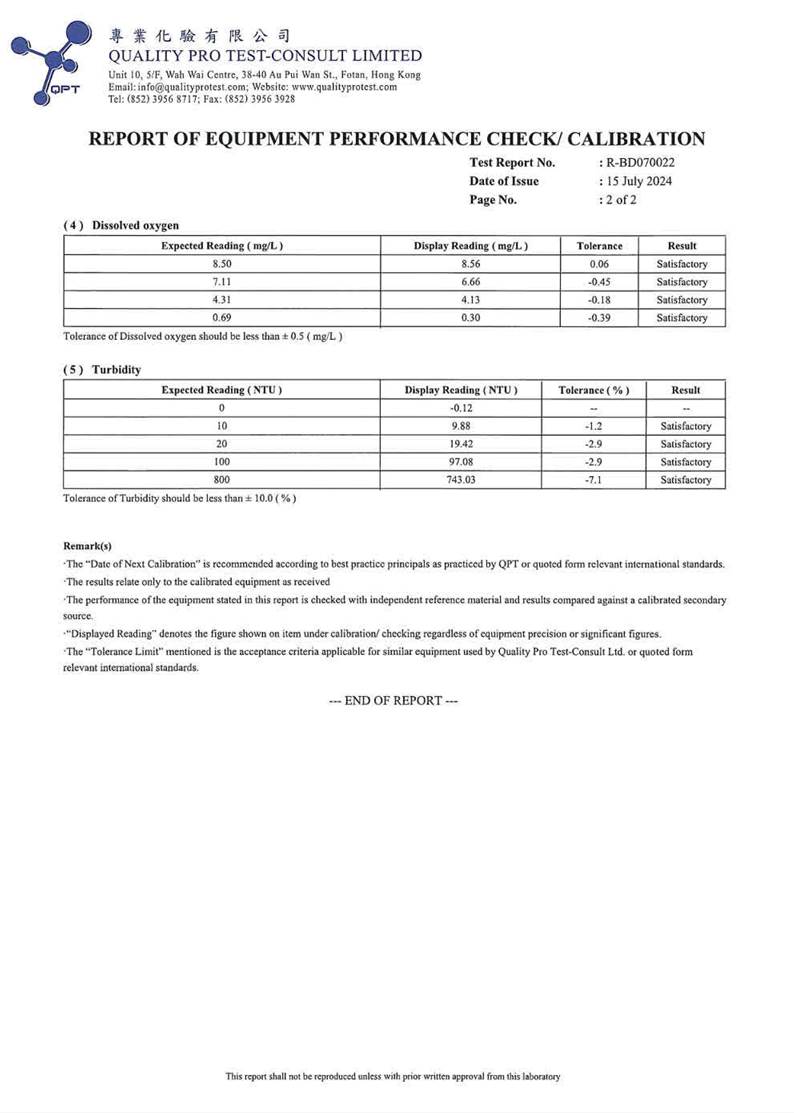

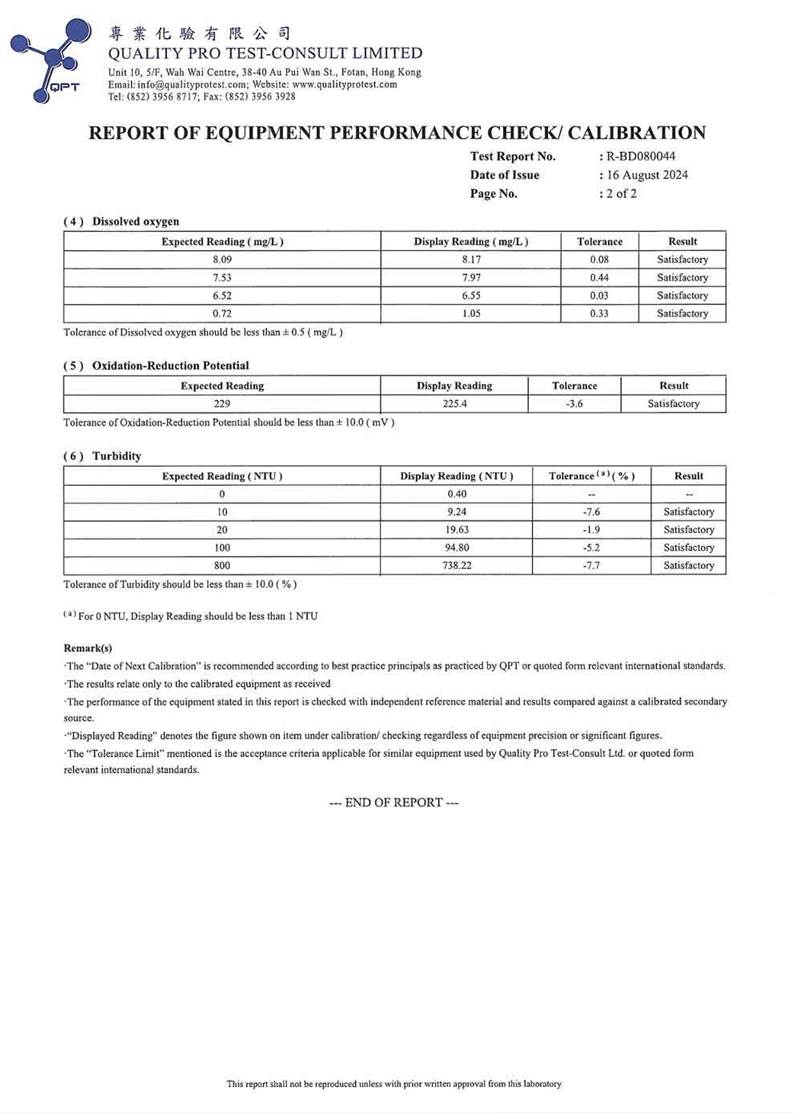

2.10. All in situ monitoring instruments were checked, calibrated, and certified by a laboratory accredited under HOKLAS or any other international accreditation scheme before use, and subsequently re-calibrated at monthly intervals throughout the stages of the water

quality monitoring. Responses of sensors and electrodes were checked with certified standard solutions before each use.

2.11. On-site calibration of field equipment was following the “Guide to On-Site Test Methods for the Analysis of Waters”, BS 1427: 2009. Sufficient stocks of spare parts were maintained for replacements when necessary. Backup monitoring equipment was made available so that monitoring can proceed uninterrupted even when equipment is under maintenance, calibration etc.

Laboratory Measurement and Analysis

a) Operation phase Marine Water Quality Monitoring

2.12. Sufficient volume of each water sample was collected for carrying out the laboratory analyses. Using chain of custody forms, collected water samples were transferred to a HOKLAS accredited laboratory (Acumen Laboratory and Testing Limit - HOKLAS 241) for immediate processing. The determination work was start within the next working day after collection of the water samples. Analytical methodology and sample preservation of other parameters were based on the latest edition of Standard Methods for the Examination of Waste and Wastewater published by APHA, AWWA and WPCF and methods by USEPA, or suitable method in accordance with requirements of HOKLAS or another internationally accredited scheme. The QA/QC details were in accordance with the requirements of HOKLAS or another internationally accredited scheme.

2.13. Parameters for laboratory measurements, standard methods and detection limits are presented in Table 2.4.

Table 2.4 Laboratory measurements, standard methods, and corresponding detection limits of marine water quality monitoring

Parameters	Standard Methods	Detection Limit	Reporting Limit	Precision
Dissolved oxygen	Instrumental, CTD	0.1	-	+-25%
Temperature	Instrumental, CTD	0.1	-	+-25%
pH	Instrumental, CTD	0.1	-	+-25%
Turbidity	Instrumental, CTD	0.1	-	+-25%
Salinity	Instrumental, CTD	0.1	-	+-25%
Suspended Solids	APHA 23rd Ed 2540D	1.0	2.5	+-17%
Iron	APHA 3111 B	0.2	-	+-25%
Total residual chlorine	APHA 4500CL: G	0.01mg/L	-	+-25%
Anti-scalant*	Content acrylic polymers determination method	5 mg/L	-	-

*Remark: A proposal for update anti-scalant monitoring under the operation phase EM&A programme is proposed via email on 27 May 2024. EPD has agreed to update the anti-scalant monitoring detection limit, action and limit level from 0.2 mg/L to 5.0 mg/L (EPD ref. ()In EP 2/N8/E/120 Pt.14).

b) Continuous Monitoring of Effluent Quality

2.14. Analyses of the sample shall be carried out using American Public Health Association Standard Method for the Examination of Water and Wastewater or other internationally accepted standard methods proposed by the Licensee and approved by the Authority which could achieve the monitoring requirement.

Table 2.5 Measurements Methods for Continuous Monitoring of Effluent Quality

Parameters	Standard Methods
Flow Rate (m3 / day)	In-house method
Temperature(°C)	Instrumental
Salinity (0/00)	Instrumental
pH (pH units)	Instrumental
Suspended Solids (mg / L)	APHA 2540E
Iron (mg / L)	APHA 3111 B
Total Inorganic Nitrogen (mg / L)	In-house method
Total Phosphorous (mg / L)	In-house method
Total Residual Chlorine	APHA 4500CL: G
Sodium Metabisulphite	--
Anti-scalant’ACUMER’ 4035*	--

*Remark: Anti-scalant water quality testing will only be conducted whenever anti-scalant dosage is adopted.

Monitoring Location

a) Operation phase Marine Water Quality Monitoring

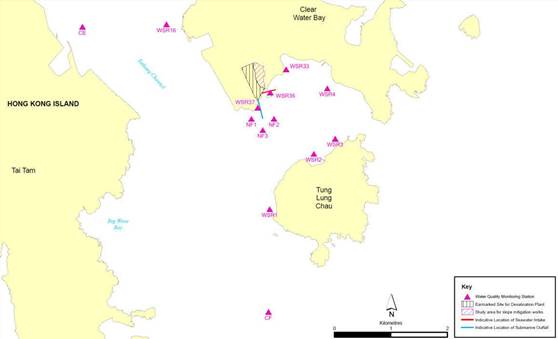

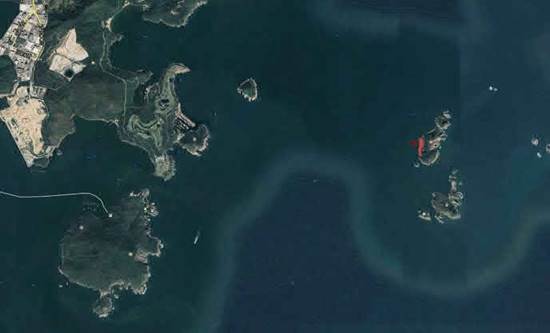

2.15. The operation phase water quality monitoring locations are in accordance with the EM&A Manual and detailed in Table 2.6 below. A schedule for water quality monitoring was prepared by the ET and submitted to IEC and EPD prior to the commencement of the monitoring.

Table 2.6 Location of Water Quality Monitoring Stations

Station	Easting	Northing	Description
CE	843550	815243	Upstream control station at ebb tide
CF	846843	810193	Upstream control station at flood tide
WSR1	846864	812014	Ecological sensitive receiver at Tung Lung Chau
WSR2	847645	812993	Fisheries sensitive receiver at Tung Lung Chau
WSR3	848023	813262	Ecological sensitive receiver at Tung Lung Chau
WSR4	847886	814154	Ecological sensitive receiver at Tai Miu Wan
WSR16	845039	815287	Ecological sensitive receiver at Fat Tong Chau
WSR33	847159	814488	Ecological sensitive receiver at Tai Miu Wan
WSR36	846878	814081	Ecological sensitive receiver at Kwun Tsai
WSR37	846655	813810	Ecological sensitive receiver at Tit Cham Chau
NF1	846542	813614	Edge of Mixing zone, ~ 200m west of outfall diffuser
NF2	846942	813614	Edge of Mixing zone, ~ 200m east of outfall diffuser
NF3	846742	813414	Edge of Mixing zone, ~ 200m south of outfall diffuser

2.16. WSR1 to WSR37 were identified in accordance with Annex 14 of the EIAO-TM as well as Clause 3.4.4.2 of the Environmental Impact Assessment Study Brief for Desalination Plant at Tseung Kwan O (No. ESB-266/2013). WSR1 to WSR3 are sited near the Tung Lung Chau Fish Culture Zone; WSR16 and WSR36 are sited near the coral assemblages along the coastlines of Fat Tong Chau and Kwun Tsai respectively; WSR 4 and WSR33 are sited near the Coastal Protection Area and coral assemblages in waters of Tai Miu Wan; WSR37 is sited near the fisheries resource including spawning and nursery grounds at the coastal water of Tit Cham Chau. NF1 to NF3 are the Edge of Mixing zone.

Sampling Frequency

a) Impact Marine Water Quality Monitoring

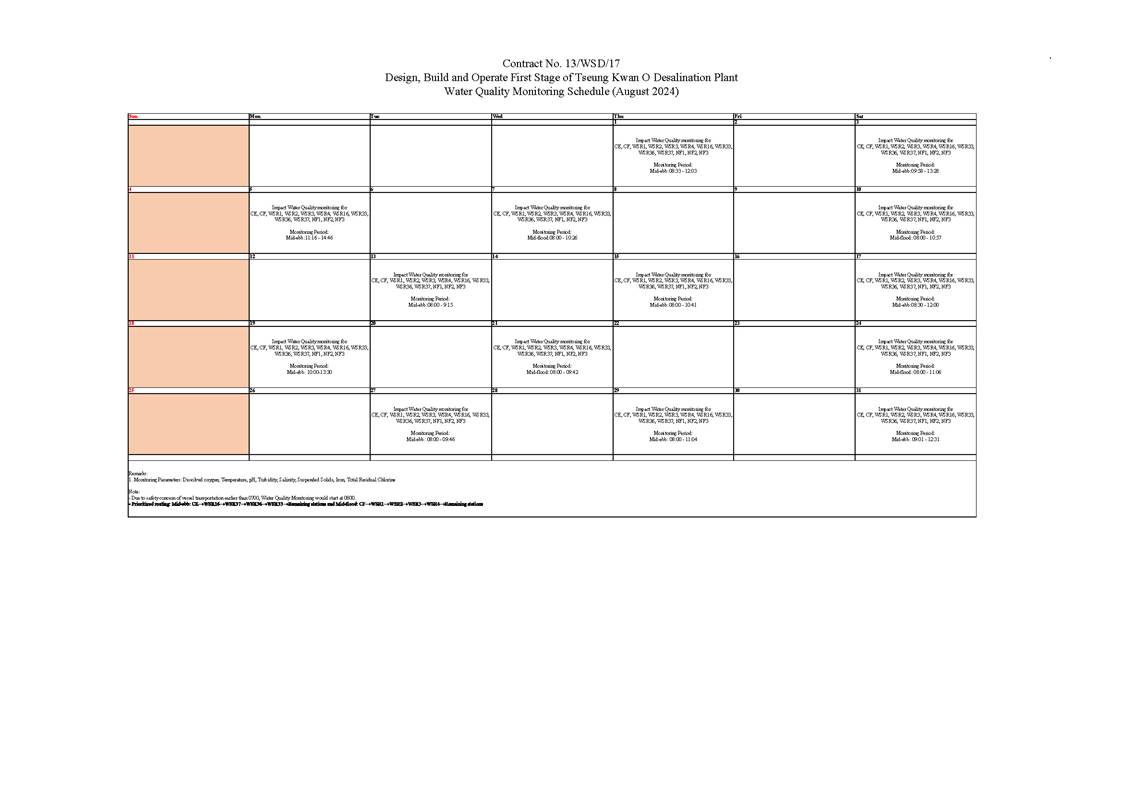

2.18. Water quality monitoring was carried out three days per week during the operation phase. Monitoring at each station was undertaken once per day. The interval between two sets of monitoring was not less than 36 hours. The monitoring frequency would be increased in the case of exceedances of Action/Limit Levels if considered necessary by ET. Monitoring frequency would be maintained as far as practicable.

b) Continuous Monitoring of Effluent Quality

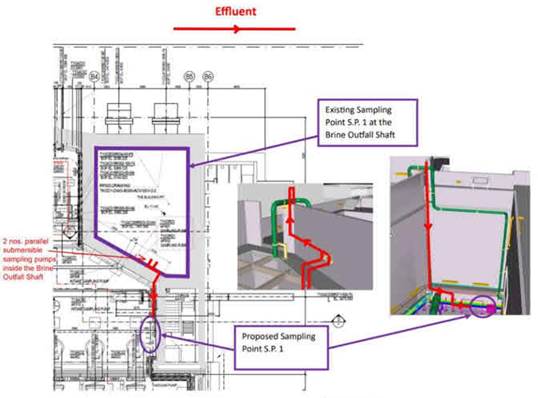

2.19. The effluent should be collected in a full 24-hour period. Twenty four-hour flow- weighted composite effluent sample for subsequent chemical analysis and testing should be prepared by the following procedures:

- Collect effluent sub-sample at bi-hourly interval over a 24 hour period

- Obtain flow record of the Project for the 24-hour sampling period

- Calculate the volume of each sub-sample for preparation of flow-weighted composite sample

- Transfer the appropriate volume of sub-samples to a clean container and mix thoroughly

Sampling Depths & Replication

a) Operation phase Marine Water Quality Monitoring

2.20. During water quality monitoring, each station was sampled, and measurements/ water samples were taken at three depths, 1 m below the sea surface, mid-depth, and 1 m above the seabed. For in situ measurements, duplicate readings were made at each water depth at each station. Duplicate water samples were collected at each water depth at each station.

b) Continuous Monitoring of Effluent Quality

2.21. The effluent sampling should be planned carefully to ensure appropriate volume of effluent sub-samples is collected to prepare sufficient amount of flow-weighted composite effluent sample for carrying out subsequent chemical analysis and testing.

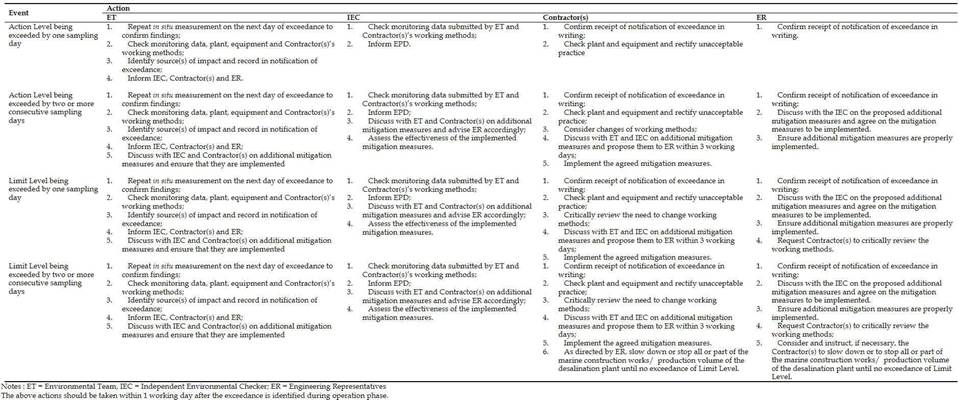

Action and Limit Levels

2.22. The Action and Limit Levels have been set based on the derivation criteria specified in the EM&A Manual. The Action/Limit Levels have been derived and are presented in Table 2.7 and Table 2.8.

a) Operation phase Marine Water Quality Monitoring

Table 2.7 Derived Action and Limit Levels for Water Quality

Parameters	Action	Limit
Operation phase Marine Water Quality Monitoring
DO in mg/L	Surface and Middle 7.30 mg L-1 Bottom 7.31 mg L-1 Tung Lung Chau Fish Culture Zone 5.1 mgL-1 or level at control station (Whichever the lower)	Surface and Middle 4 mg L-1 Bottom 2 mg L-1 Tung Lung Chau Fish Culture Zone 5.0 mgL-1 or level at control station (Whichever the lower)
SS in mg/L (Depth- averaged)	5.00 mg L-1 or 20% exceedance of value at any impact station compared with corresponding data from control station	6.00 mg L-1 or 30% exceedance of value at any impact station compared with corresponding data from control station
Turbidity in NTU (Depth- averaged)	2.41 NTU or 20% exceedance of value at any impact station compared with corresponding data from control station	2.84 NTU or 30% exceedance of value at any impact station compared with corresponding data from control station
Salinity in PSU (Depth- averaged)	34.25 PSU or 9% exceedance of value at any impact station compared with corresponding data from control station	34.56 PSU or 10% exceedance of value at any impact station compared with corresponding data from control station
Iron in mg/L (Depth- averaged)	0.3 mg/L	0.3 mg/L
Total residual chlorine in mg/L	0.01 mg/L	0.01 mg/L
*Anti-scalant in mg/L (Depth- averaged)	5.0 mg/L	5.0 mg/L

Notes:

i. "Depth-averaged" is calculated by taking the arithmetic means of reading of all three depths.

ii. For DO, non-compliance of the water quality limits occurs when monitoring result is lower than the limits.

iii. For Turbidity, SS, iron and Salinity, non-compliance of the water quality limits occurs when monitoring result is higher than the limits.

iv. *A proposal for update anti-scalant monitoring under the operation phase EM&A programme is proposed via email on 27 May 2024. EPD has agreed to update the anti-scalant monitoring detection limit, action and limit level from 0.2 mg/L to 5.0 mg/L (EPD ref. ()In EP 2/N8/E/120 Pt.14).

b) Continuous Monitoring of Effluent Quality

Table 2.8 Derived Limit Levels for Water Quality

Parameters	Limit
Continuous Monitoring of Effluent Quality
Flow Rate in m3/day	216841
Temperature in °C	Maximum 40
Salinity	71347
SS in mg/L	13
pH	6-9
Iron in mg/L	0.6
Total residual chlorine in mg/L	0.1
Total Inorganic Nitrogen in mg/L	2
Total Phosphorous in mg/L	1
Sodium Metabisulphite in mg/L	0.5
Anti scalant in mg/L*	2.2

*Remark:

1. Anti-scalant water quality testing will only be conducted whenever anti-scalant dosage is adopted.

Monitoring Results and Observations

a) Operation phase Marine Water Quality Monitoring

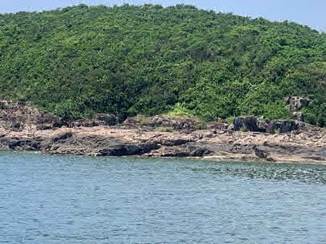

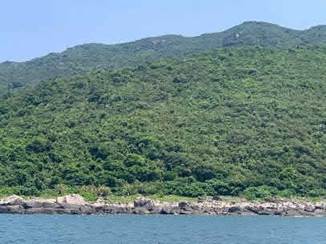

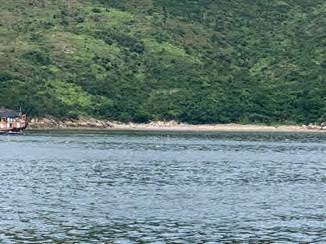

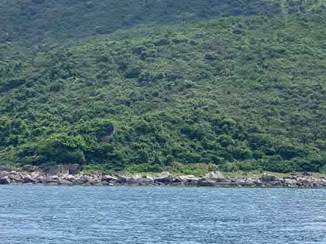

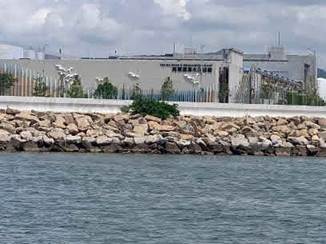

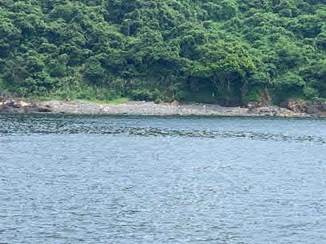

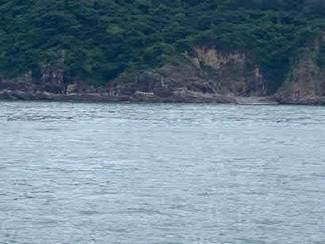

2.23. Considering the operation phase of Tseung Kwan O Desalination Plant commenced from 1 July 2024. Marine water quality monitoring for the operation phase of Tseung Kwan O Desalination Plant was conducted in the reporting period at the thirteen monitoring stations (CE, CF, WSR1, WSR2, WSR3, WSR4, WSR16, WSR33, WSR36, WSR37, NF1, NF2

and NF3). The Action and Limit Level would be referred to the approved EM&A Manual Table 2.7.

2.24. The marine water quality monitoring was conducted at the thirteen monitoring stations on 1, 3, 5, 7, 10, 13, 15, 17, 19, 21, 24, 27, 29 and 31 August 2024.

2.25. Twenty-three (23) of the operation phase water quality monitoring results of SS obtained had exceeded the Action Level. Fifty (50) of SS obtained during the reporting period had exceeded the Limit Level.

Table 2.9 Summary of Impact Water Quality Monitoring Results

Locations		Parameters
		Salinity (ppt)	Dissolved Oxygen (mg/L)		pH	Turbidity (NTU)	Suspended Solids (mg/L)	Temp. (oC)	TRC (mg/L)	Iron (mg/L)
		Salinity (ppt)	Surface & Middle	Bottom	pH	Turbidity (NTU)	Suspended Solids (mg/L)	Temp. (oC)	TRC (mg/L)	Iron (mg/L)
CE	Avg.	32.25	8.59	8.58	8.22	2.46	4.43	28.52	<0.01	<0.1
	Min.	30.90	7.93	7.92	8.02	2.10	2.50	27.24	<0.01	<0.1
	Max.	33.40	9.45	9.45	8.37	2.76	15.00	29.75	<0.01	<0.1
CF	Avg.	32.05	8.78	8.78	8.21	2.32	4.42	28.51	<0.01	<0.1
	Min.	31.39	8.05	8.05	8.03	1.93	2.50	26.94	<0.01	<0.1
	Max.	32.90	9.28	9.29	8.36	2.85	15.00	29.71	<0.01	<0.1
WSR1	Avg.	32.34	8.69	8.70	8.19	1.68	4.49	28.56	<0.01	<0.1
	Min.	31.24	8.06	8.16	8.08	1.14	2.50	27.16	<0.01	<0.1
	Max.	33.83	9.30	9.26	8.36	2.20	14.00	29.68	<0.01	<0.1
WSR2	Avg.	32.38	8.70	8.70	8.26	1.75	4.86	28.62	<0.01	<0.1
	Min.	31.58	8.16	8.12	8.08	1.45	2.50	27.20	<0.01	<0.1
	Max.	34.12	9.29	9.27	8.38	2.09	19.00	29.87	<0.01	<0.1
WSR3	Avg.	32.25	8.78	8.79	8.24	1.71	5.46	28.50	<0.01	<0.1
	Min.	31.41	8.08	8.04	8.11	1.25	2.50	27.32	<0.01	<0.1
	Max.	34.03	9.34	9.36	8.35	2.12	18.00	29.53	<0.01	<0.1
WSR4	Avg.	32.17	8.72	8.72	8.20	1.73	5.89	28.55	<0.01	<0.1
	Min.	31.22	8.05	8.07	8.10	1.22	2.50	27.34	<0.01	<0.1
	Max.	33.20	9.42	9.50	8.41	2.15	19.00	29.59	<0.01	<0.1
WSR16	Avg.	32.12	8.73	8.72	8.24	1.67	5.64	28.57	<0.01	<0.1
	Min.	31.03	7.93	8.10	8.12	1.19	2.50	27.43	<0.01	<0.1
	Max.	33.12	9.42	9.40	8.35	1.91	19.00	29.54	<0.01	<0.1

Locations		Parameters
		Salinity (ppt)	Dissolved Oxygen (mg/L)		pH	Turbidity (NTU)	Suspended Solids (mg/L)	Temp. (oC)	TRC (mg/L)	Iron (mg/L)
		Salinity (ppt)	Surface & Middle	Bottom	pH	Turbidity (NTU)	Suspended Solids (mg/L)	Temp. (oC)	TRC (mg/L)	Iron (mg/L)
WSR33	Avg.	32.07	8.56	8.54	8.26	1.76	5.80	28.50	<0.01	<0.1
	Min.	30.96	7.94	7.96	8.04	1.28	2.50	27.05	<0.01	<0.1
	Max.	33.15	9.53	9.44	8.41	2.11	18.00	29.65	<0.01	<0.1
WSR36	Avg.	32.29	8.61	8.63	8.24	1.82	5.61	28.53	<0.01	<0.1
	Min.	31.36	7.93	8.00	8.09	1.27	2.50	27.08	<0.01	<0.1
	Max.	33.41	9.18	9.21	8.37	2.19	23.00	29.64	<0.01	<0.1
WSR37	Avg.	32.31	8.68	8.68	8.22	1.77	5.85	28.56	<0.01	<0.1
	Min.	31.52	7.98	7.93	8.11	1.35	2.50	27.27	<0.01	<0.1
	Max.	33.17	9.21	9.29	8.35	2.15	24.00	29.86	<0.01	<0.1
NF1	Avg.	32.28	8.64	8.63	8.20	1.64	5.14	28.50	<0.01	<0.1
	Min.	31.05	7.87	7.88	8.05	1.20	2.50	27.19	<0.01	<0.1
	Max.	33.42	9.32	9.30	8.36	2.23	23.00	29.73	<0.01	<0.1
NF2	Avg.	32.10	8.56	8.57	8.24	1.73	6.24	28.58	<0.01	<0.1
	Min.	31.34	7.89	7.74	8.05	1.29	2.50	27.16	<0.01	<0.1
	Max.	32.80	9.05	9.04	8.39	2.12	26.00	29.71	<0.01	<0.1
NF3	Avg.	32.17	8.76	8.75	8.26	1.70	5.71	28.49	<0.01	<0.1
	Min.	31.45	8.18	8.25	8.05	1.24	2.50	27.14	<0.01	<0.1
	Max.	33.63	9.30	9.31	8.40	2.07	25.00	29.83	<0.01	<0.1

Notes:

i. “Avg", “Min” and “Max” is the average, minimum and maximum respectively of the data from measurements conducted under mid-flood and mid-ebb tides at three water depths, except that of

DO where the data for “Surface & Middle” and “Bottom” are calculated separately.

ii. Measurement data of Suspending Solids would be rounding to 2.5mg/L if the value was less than 2.5mg/L to facilitate data analysing.

Table 2.10 Summary of Continuous Effluent Monitoring Results

	Sal (ppt)	pH	Temp (°C)	Total Residual Chlorine (mg/L)	Suspended Solids (mg/L)	Total Inorganic Nitrogen (mg/L)	Total Phosphorus (mg/L)	*Sodium Metabisulphite (mg/L)	Iron (mg/L)
Avg.	53.61	7.69	29.74	<0.05	2	0.23	0.01	<2	<0.1
Min.	50.02	7.27	27.73	<0.05	<2	0.08	<0.01	<2	<0.1
Max.	57.14	7.92	30.99	<0.05	2	0.49	0.02	<2	<0.1

* Remark: As confirmed by various laboratories in Hong Kong, the lowest detection limit for Sodium Metabisulphite is <2 mg/L. Due to the limitation of the laboratory, the lowest result for Sodium Metabisulphite will only be shown as < 2 mg/L.

3. Waste

3.1. The waste generated from this Contract includes inert construction and demolition (C&D) materials, and non-inert C&D materials. Non-inert C&D materials are made up of general refuse, vegetative wastes and recyclable wastes such as plastics and paper/cardboard packaging waste. Steel materials generated from the Contract are also grouped into non-inert C&D materials as the materials were not disposed of with other inert C&D materials. With reference to relevant handling records and trip tickets of this Contract, the quantities of different types of waste generated in the reporting month are summarized in Table 3.1. Details of cumulative waste management data are presented as a waste flow table in Appendix G.

Table 3.1 Quantities of Waste Generated from the Contract during the reporting period

Reporting Month	Actual Quantities of Inert C&D Materials Generated Monthly						Actual Quantities of C&D Wastes Generated Monthly
	Total Quantity Generated	Hard Rock and Large Broken Concrete	Reused in the Contract	Reused in other Projects	Disposed as Public Fill	Imported Fill	Metals	Paper / cardboard packaging	Plastics (1)	Chemical Waste	Others, e.g., general refuse
	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)	(in ‘000kg)
Aug 2024	163.330	0.000	0.000	0.000	163.330	0.000	0.000	0.000	0.000	2.460	42.260

Notes: (1) Plastics refer to plastic bottles / containers, plastic sheets / foam from packaging material

3.2. No dewatered sludge was generated by the

Rev.	Description of Modification	Date
1.	First Issue for Comments	09/09/2024
2.	Revised According to Comments	14/09/2024

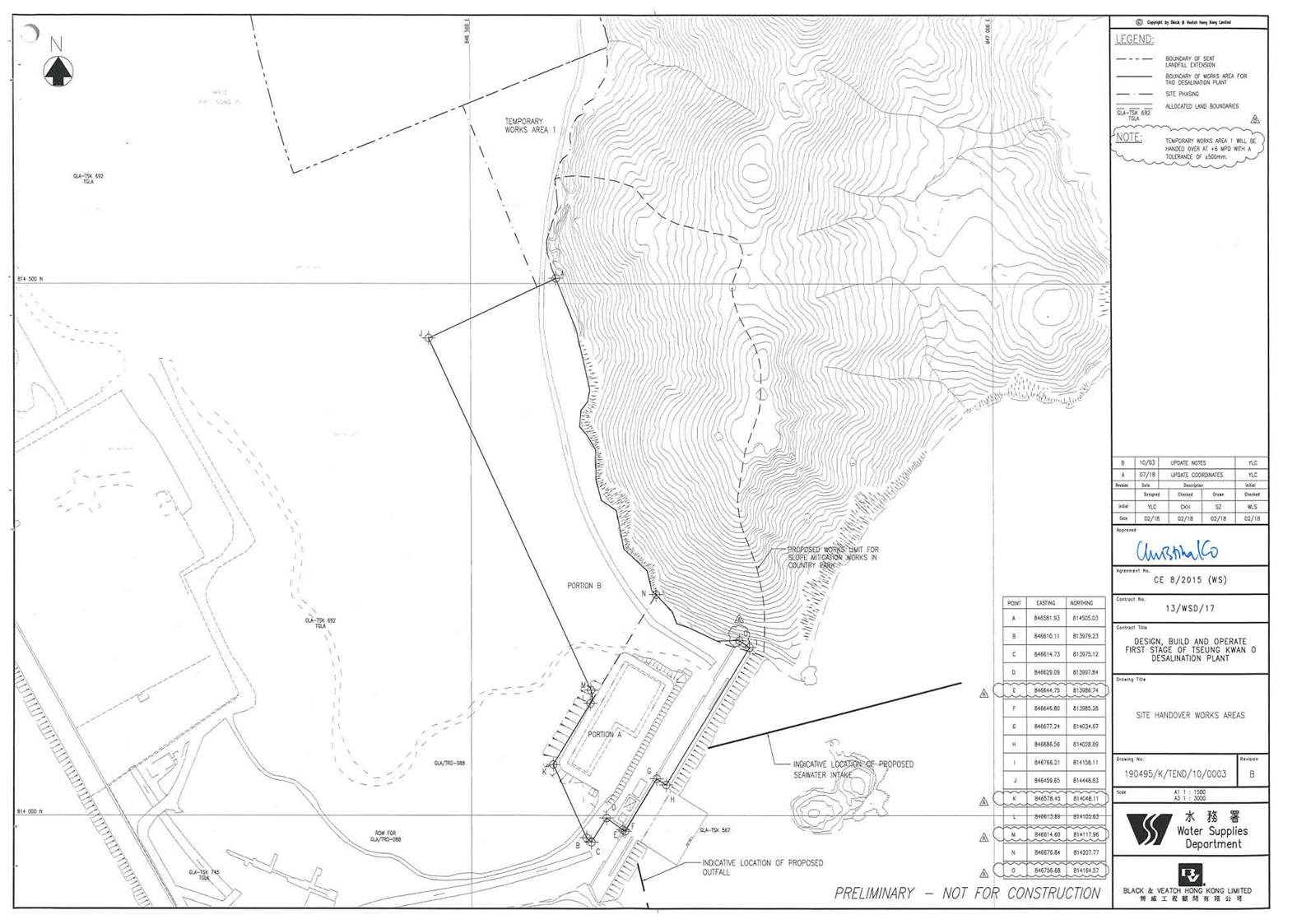

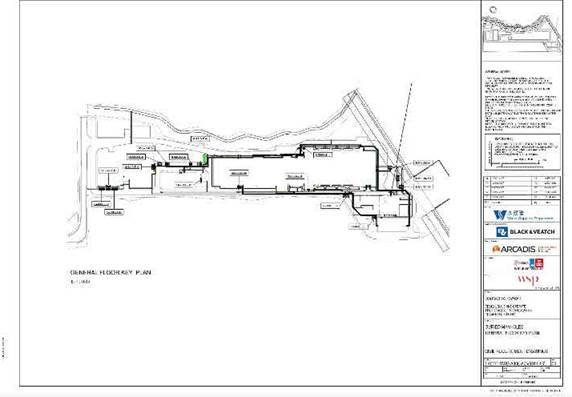

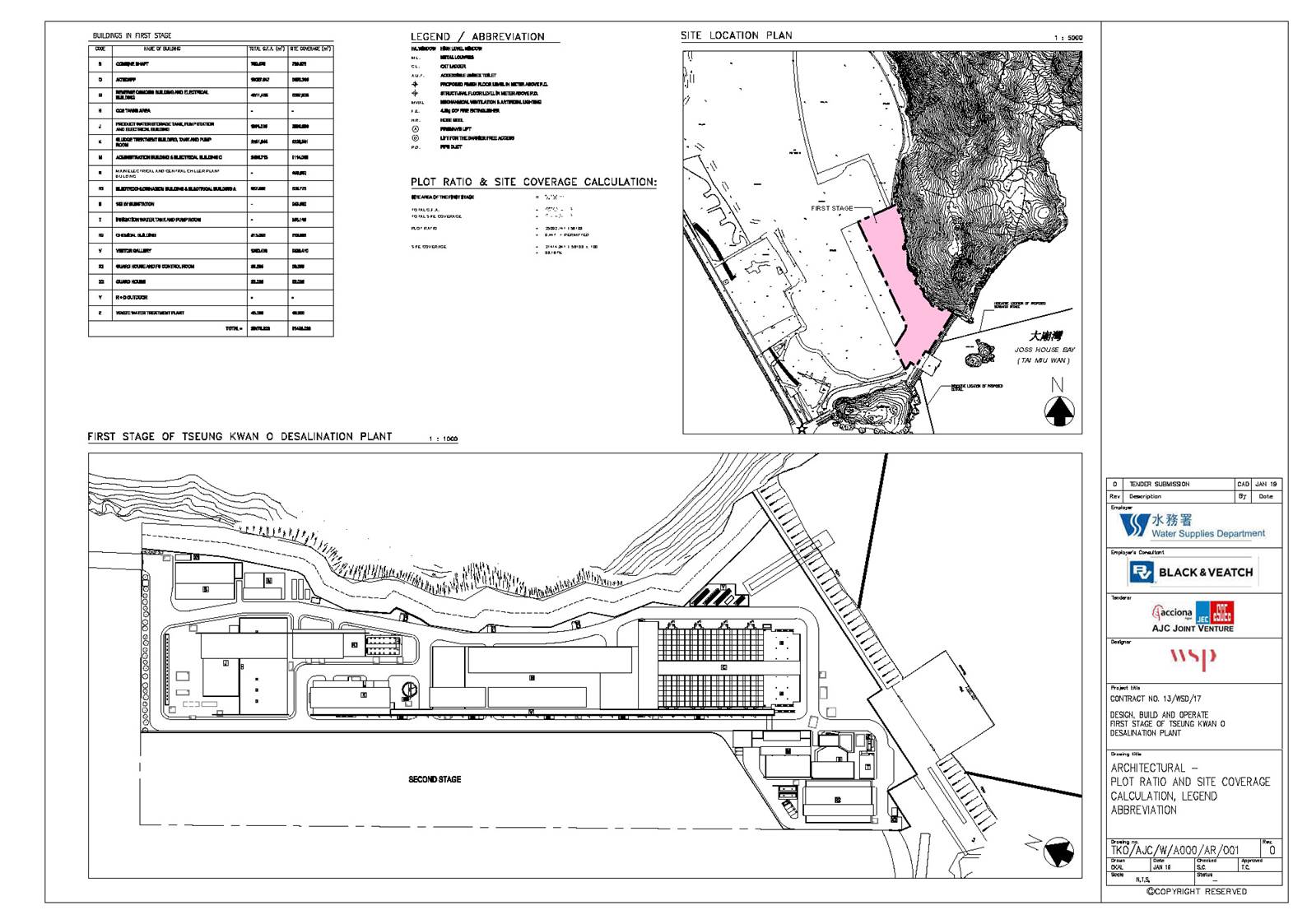

Appendix A	Overview of Desalination Plant in Tseung Kwan O
Appendix B	Summary of Implementation Status of Environmental Mitigation

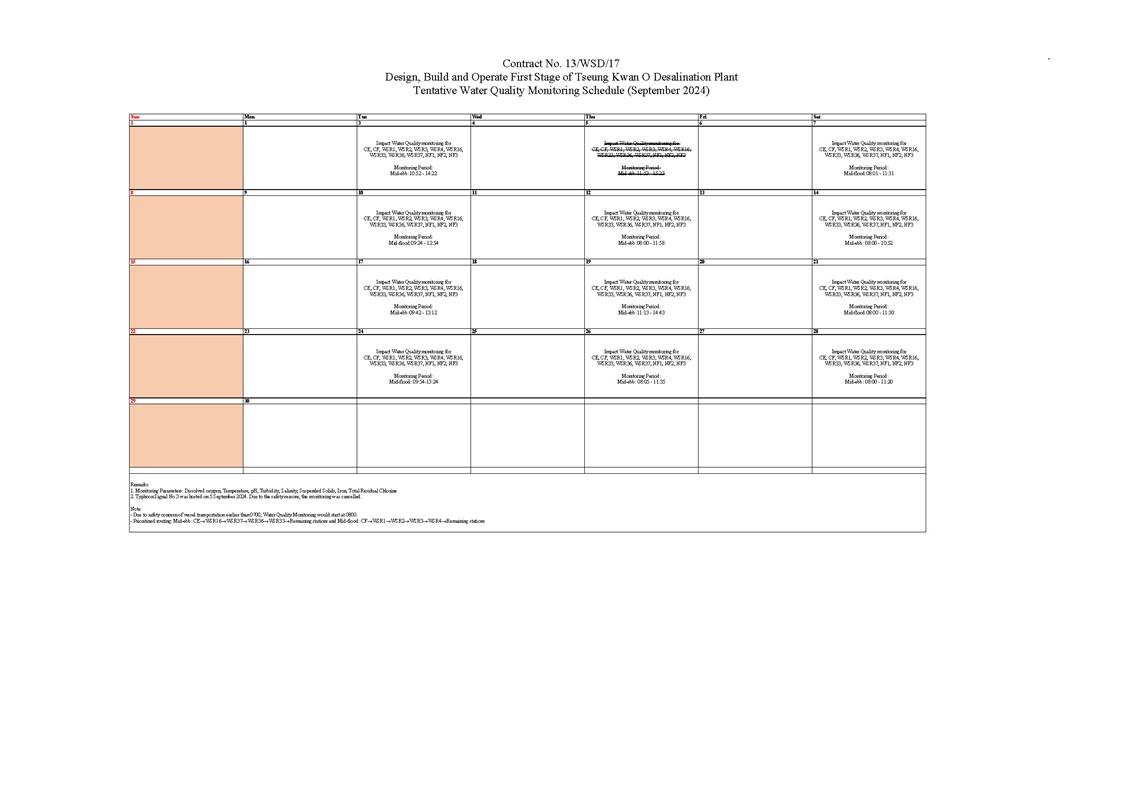

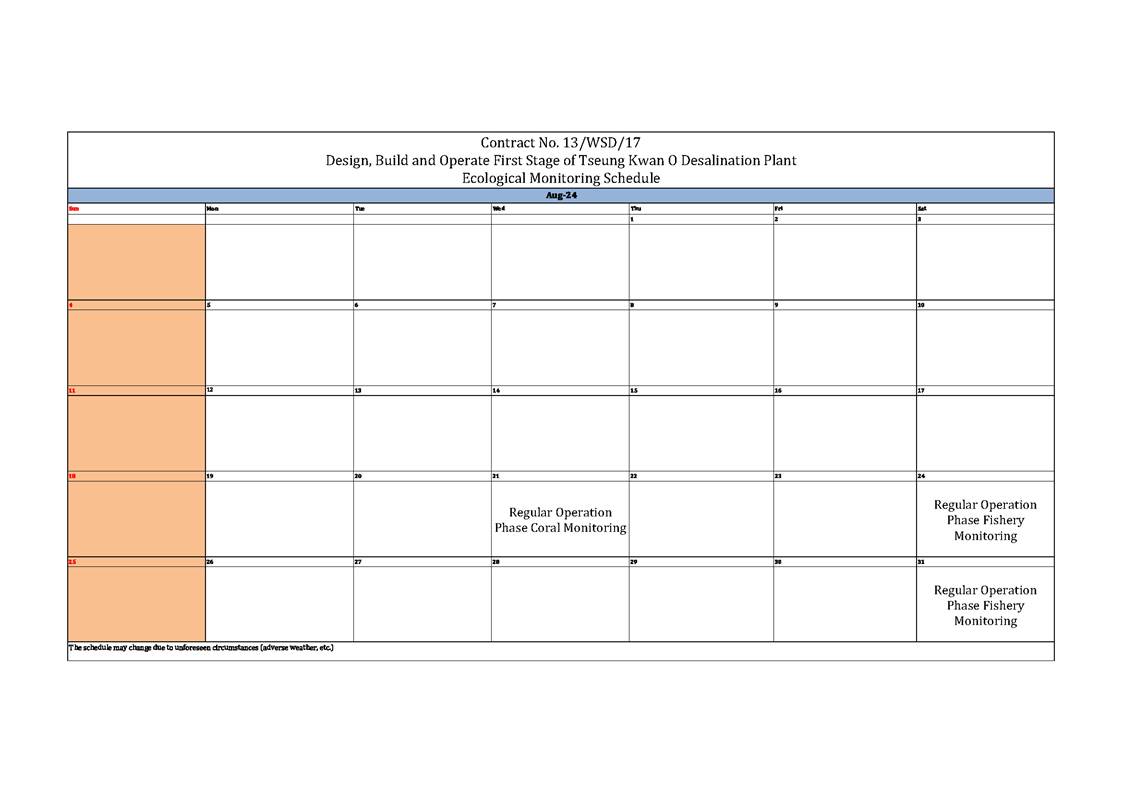

Appendix C	Impact Monitoring Schedule

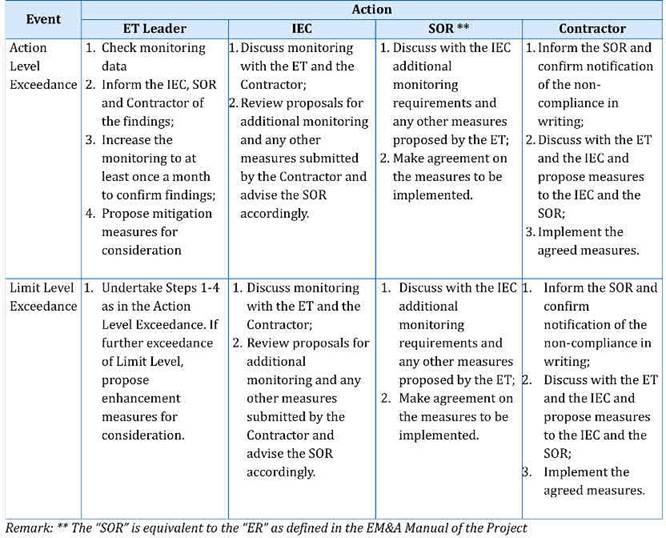

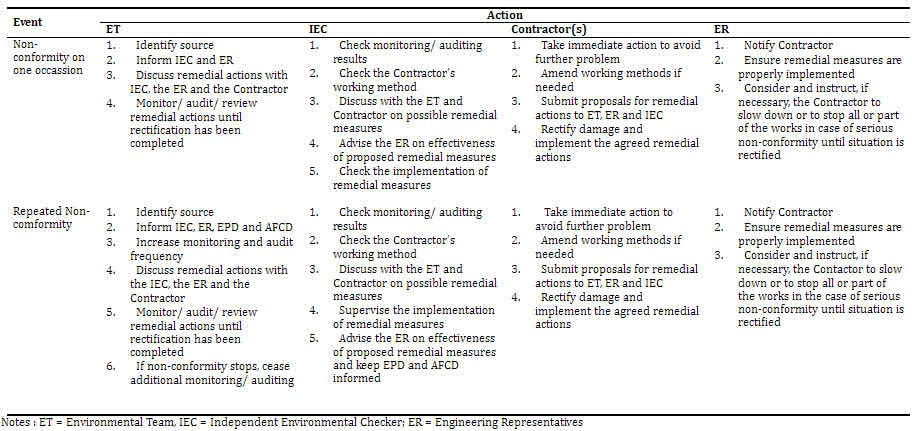

Appendix D	Event/Action Plan

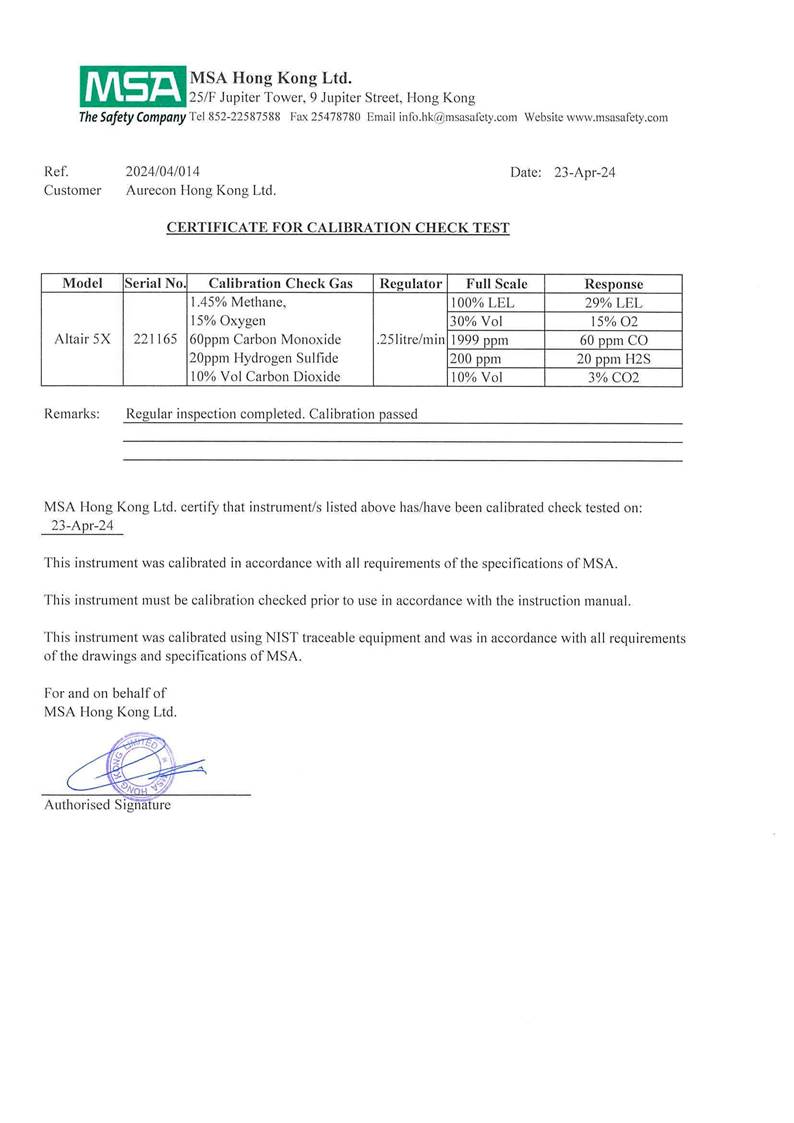

Appendix E	Water Quality Monitoring Equipment and Landfill Gas Equipment Calibration Certificate
Appendix F	Water Quality Monitoring Data and Landfill Gas Monitoring Data
Appendix G	Waste Flow Table

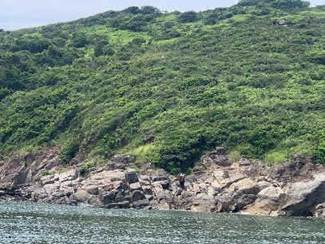

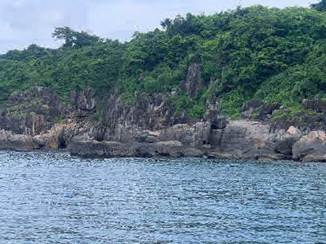

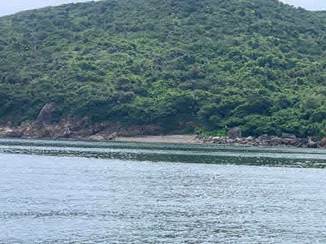

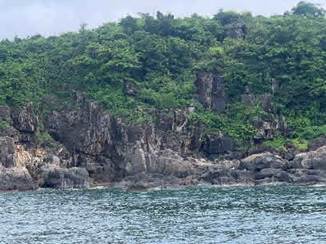

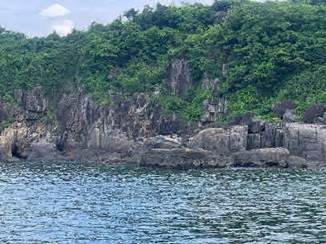

Appendix H	Ecology (Coral & Fishery) Survey Report

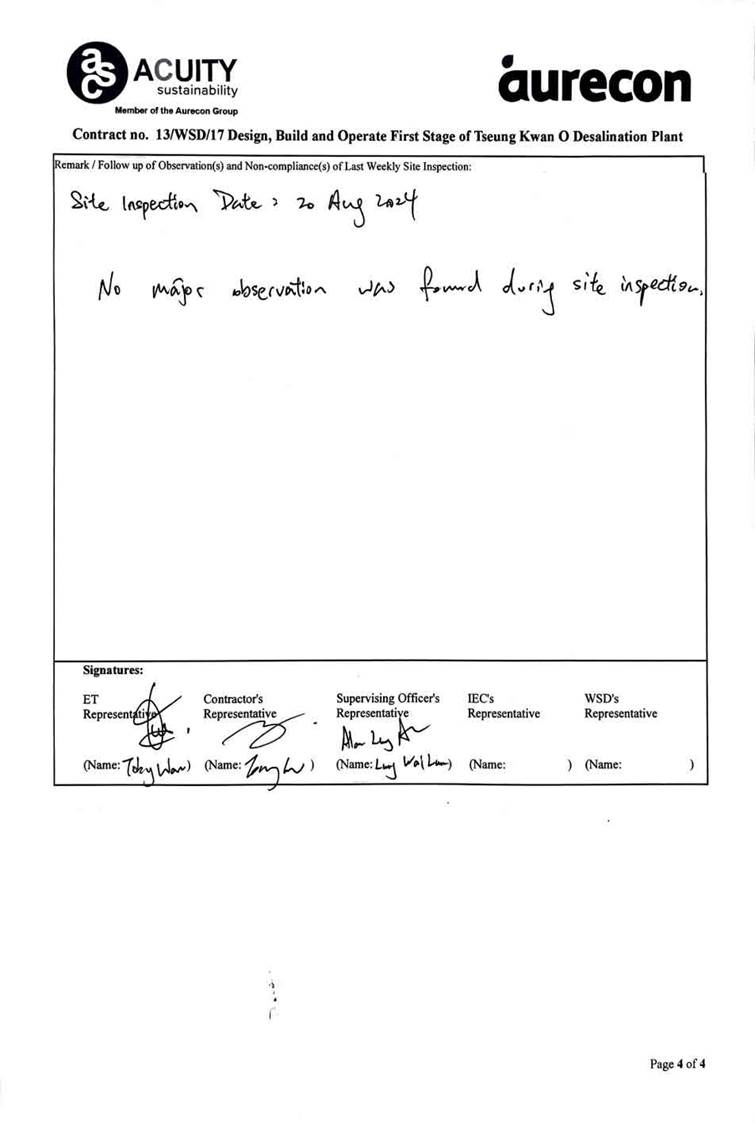

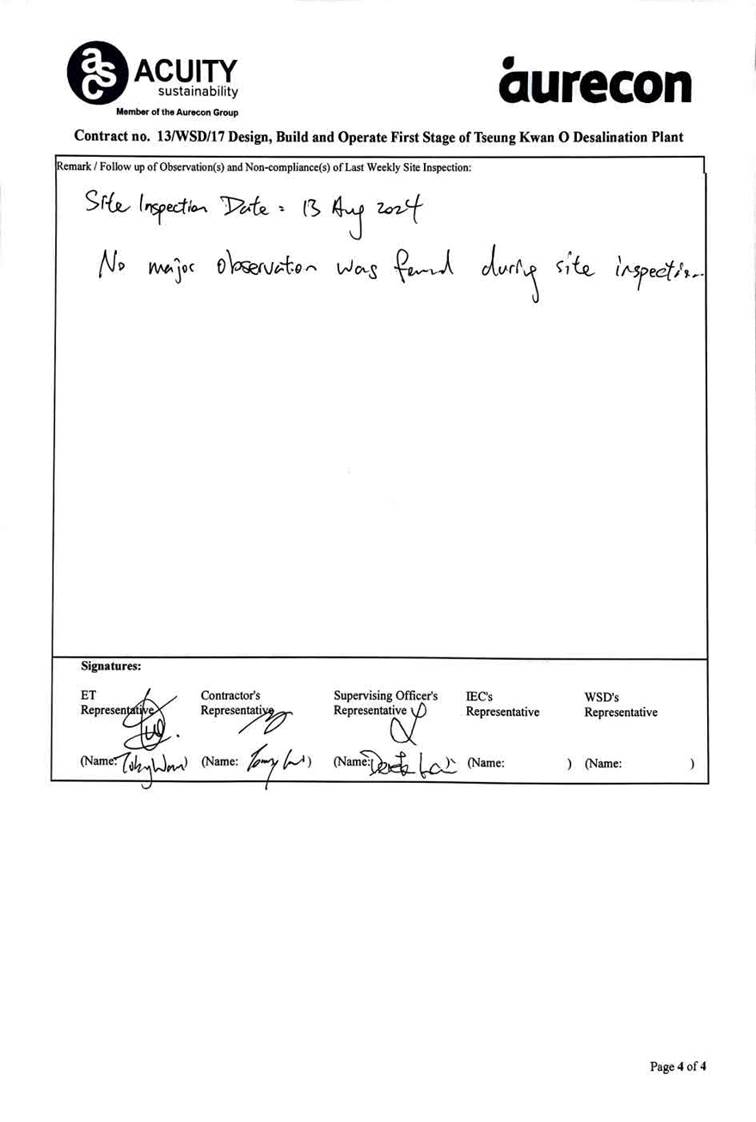

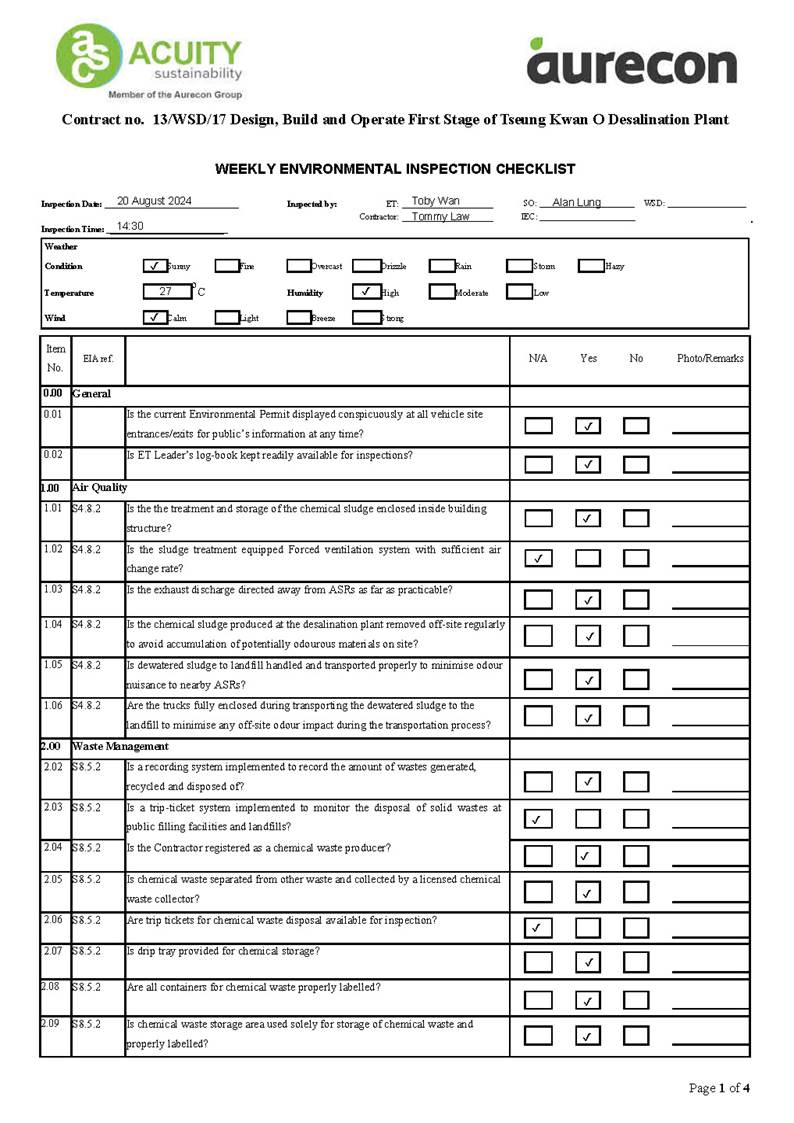

Appendix I	Site Inspection Proforma

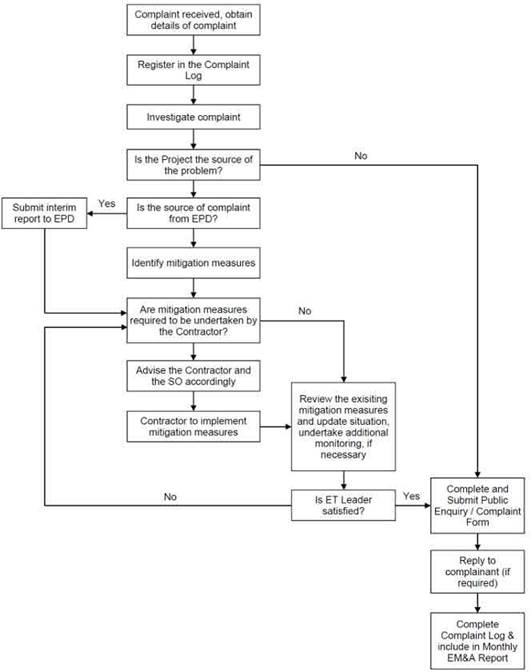

Appendix J	Complaint Log
Appendix K	Exceedance Report

Executive Summary

1. Basic Contract Information

2. Water Quality

3. Waste
